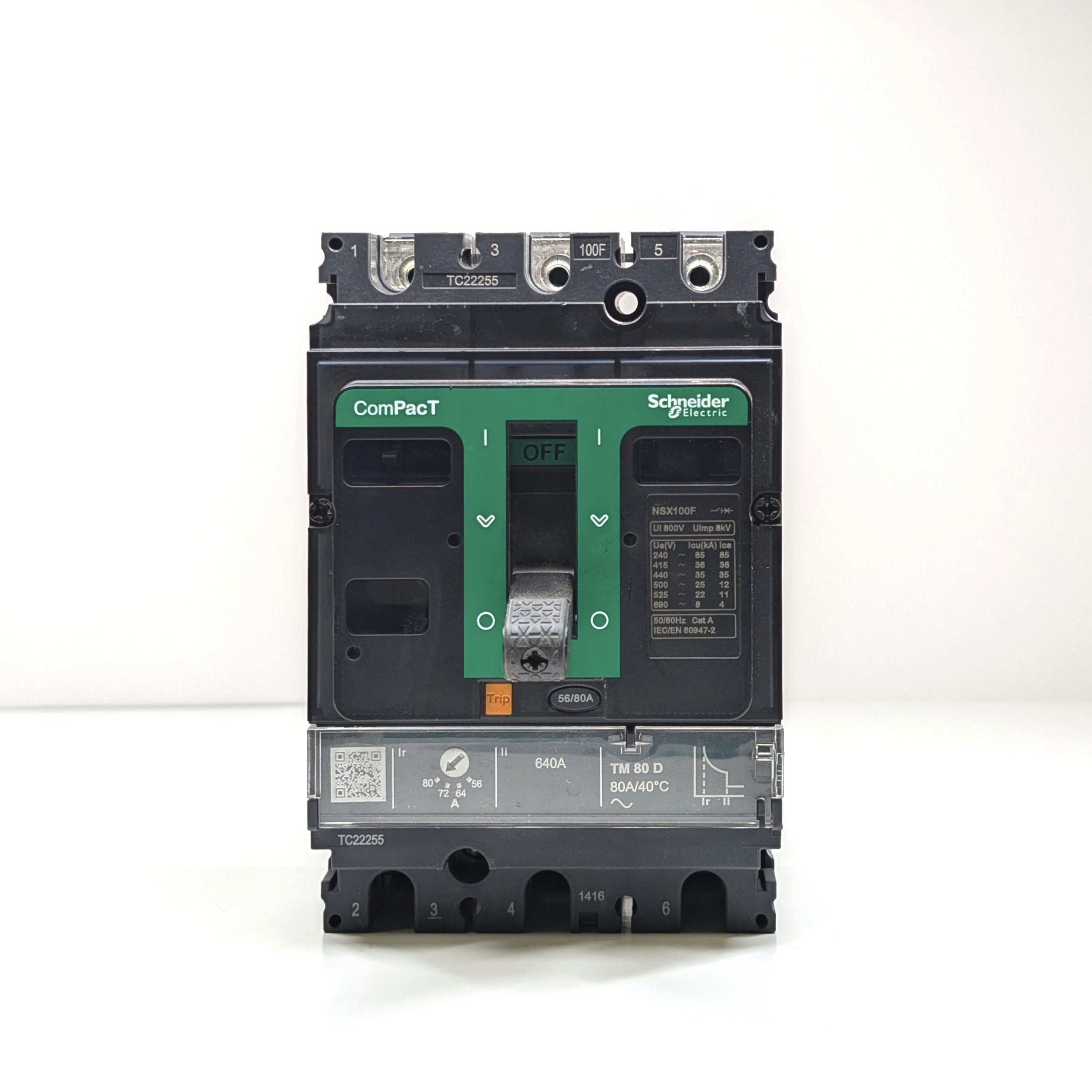

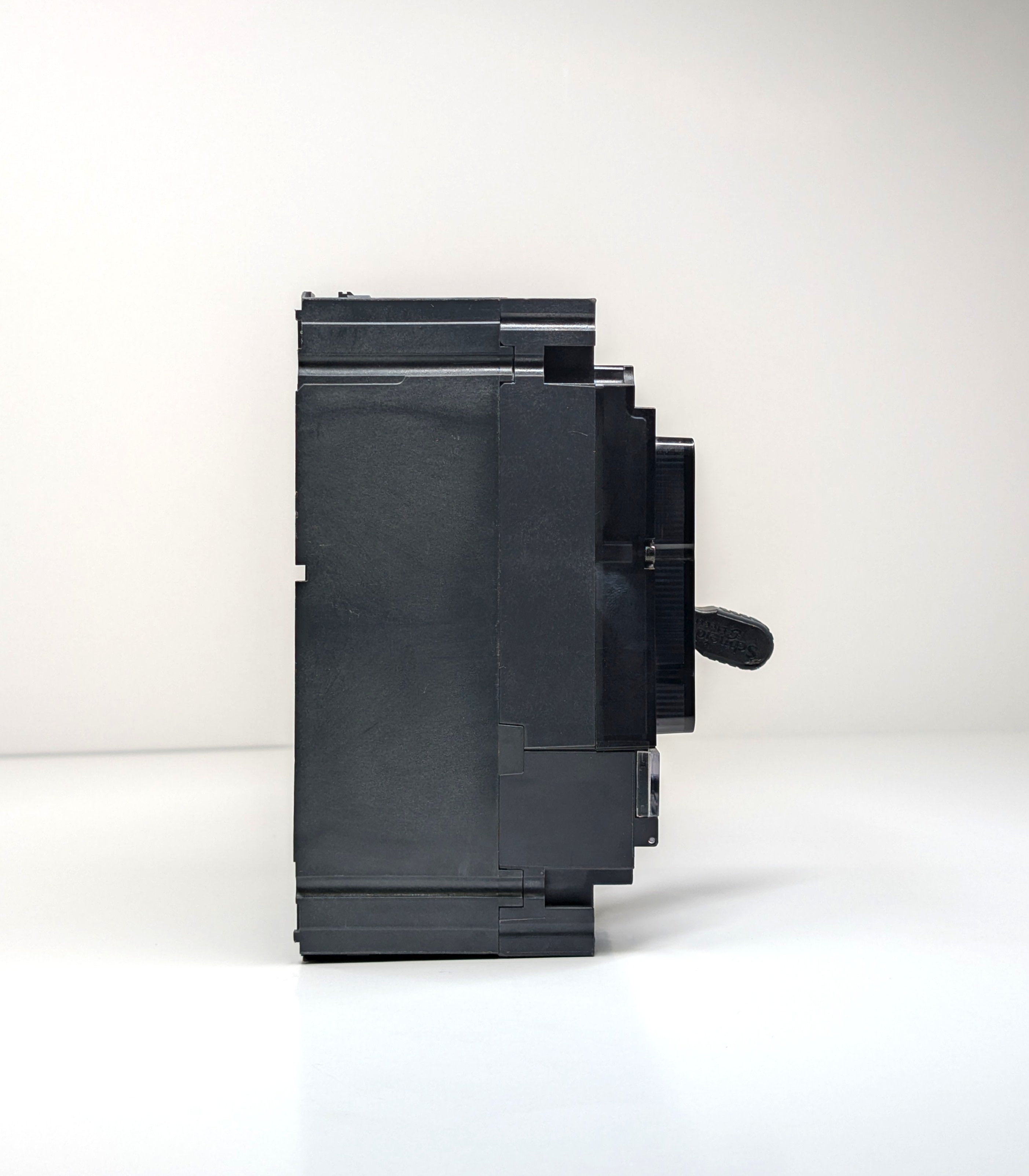

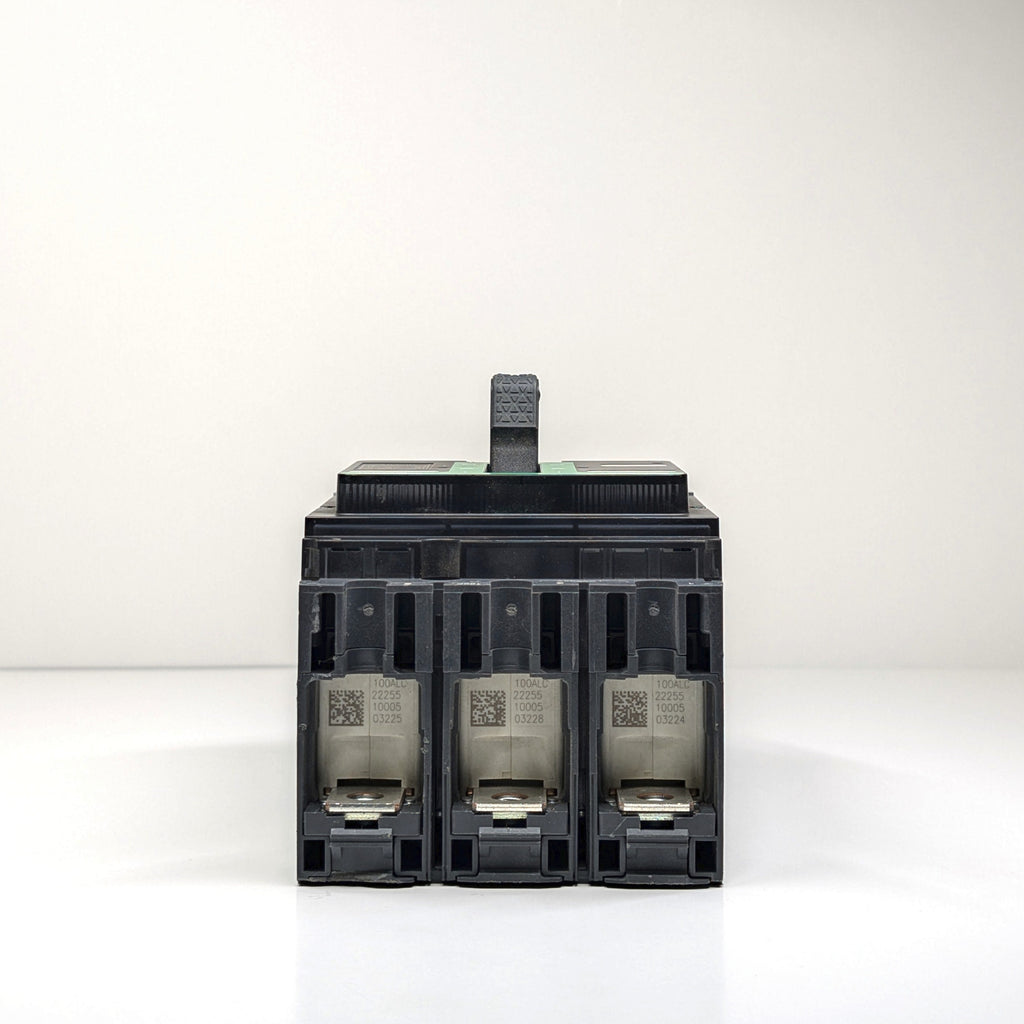

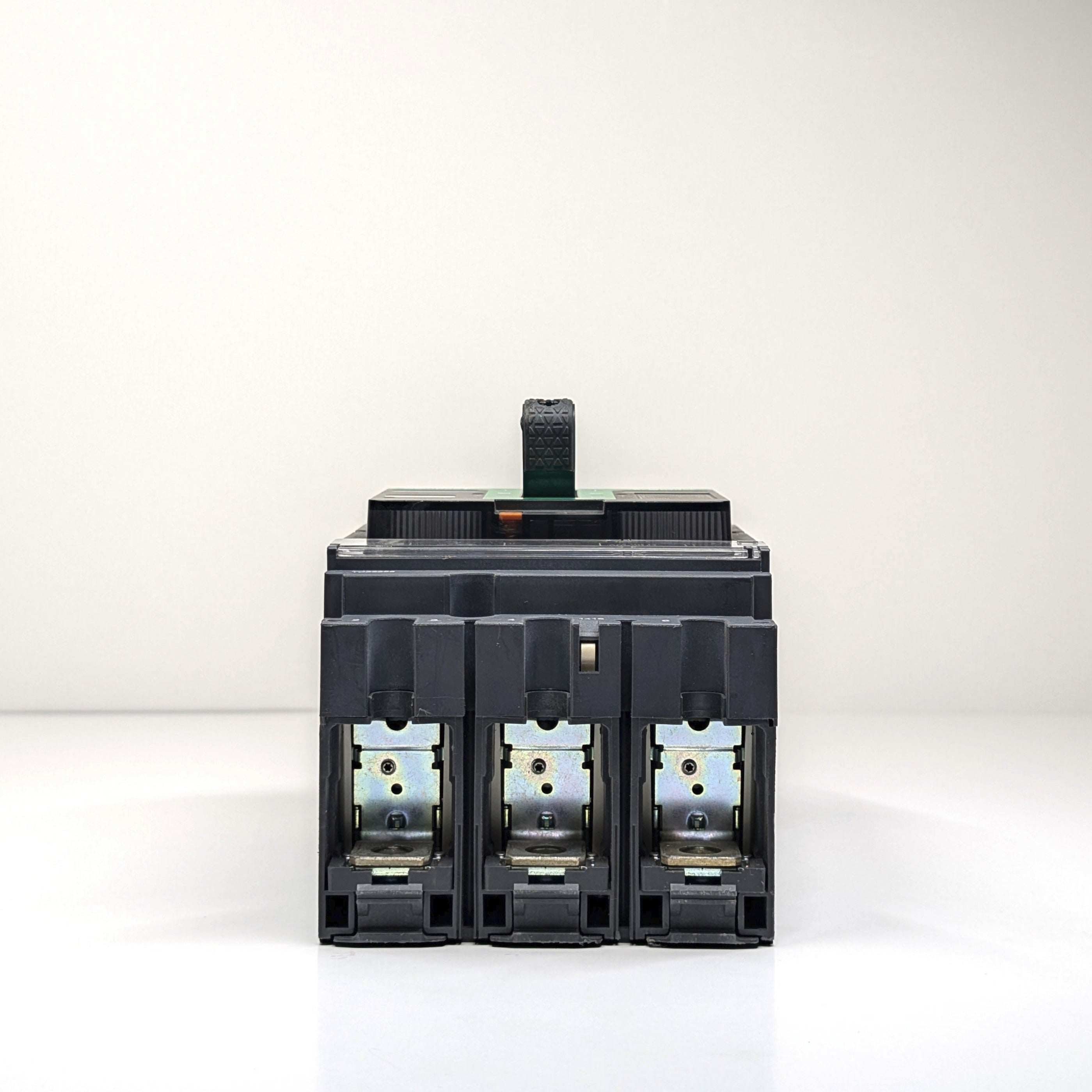

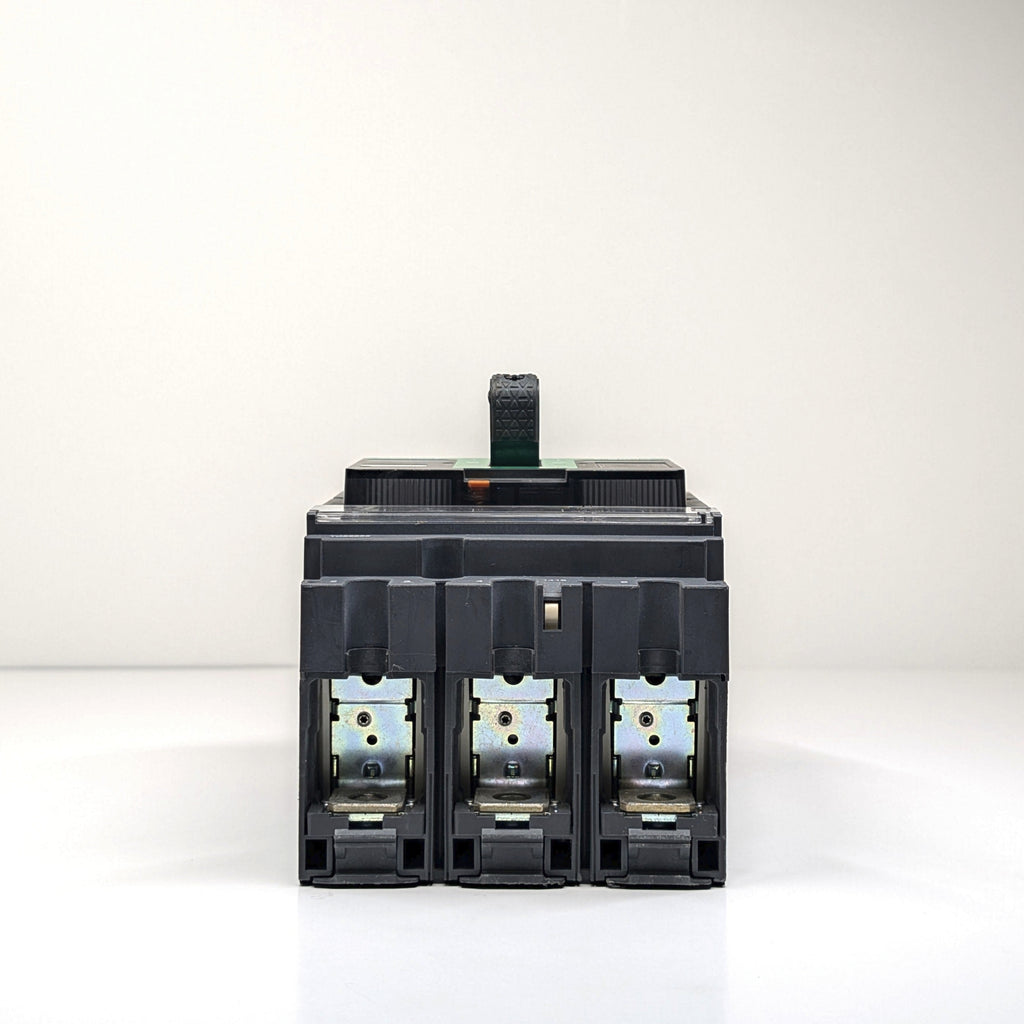

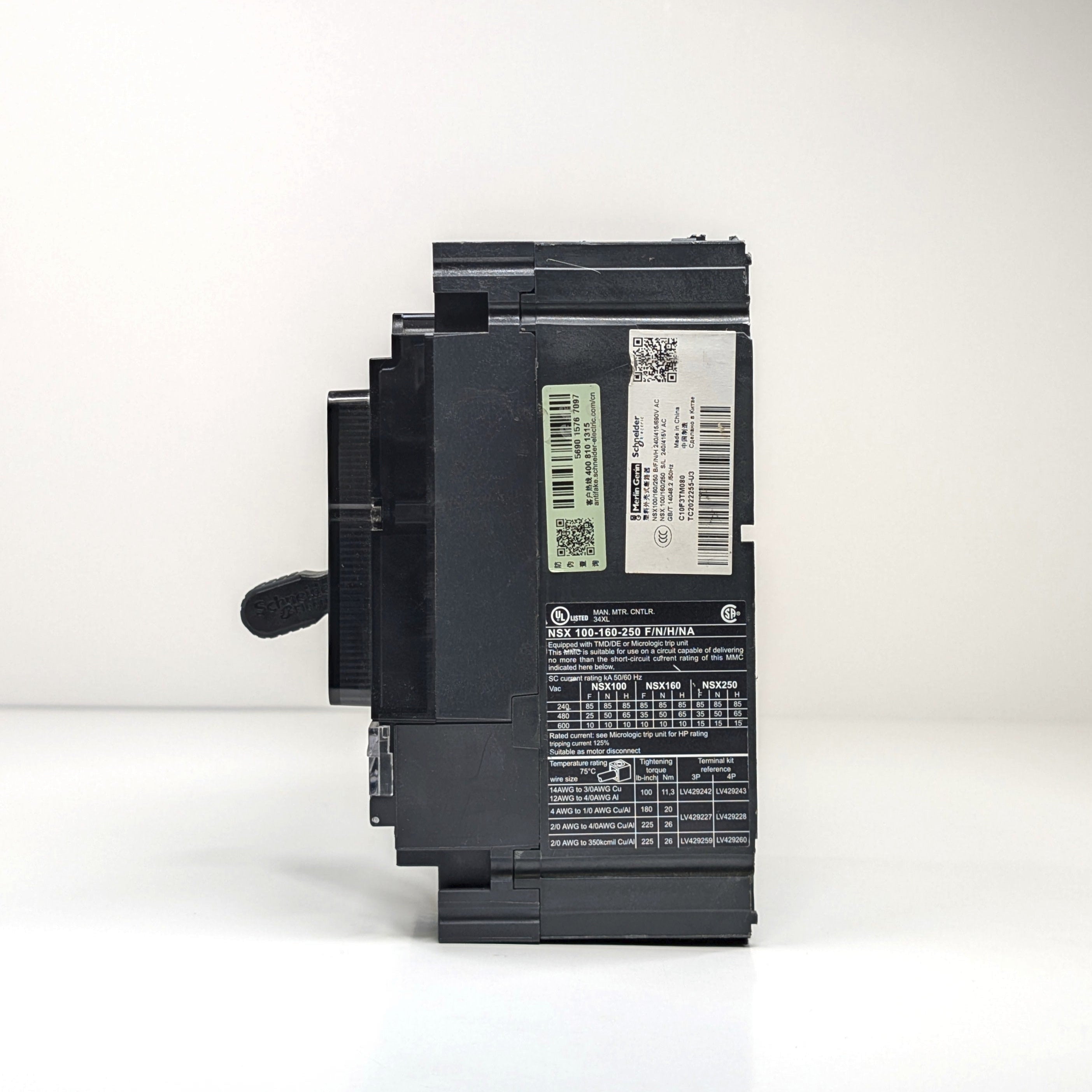

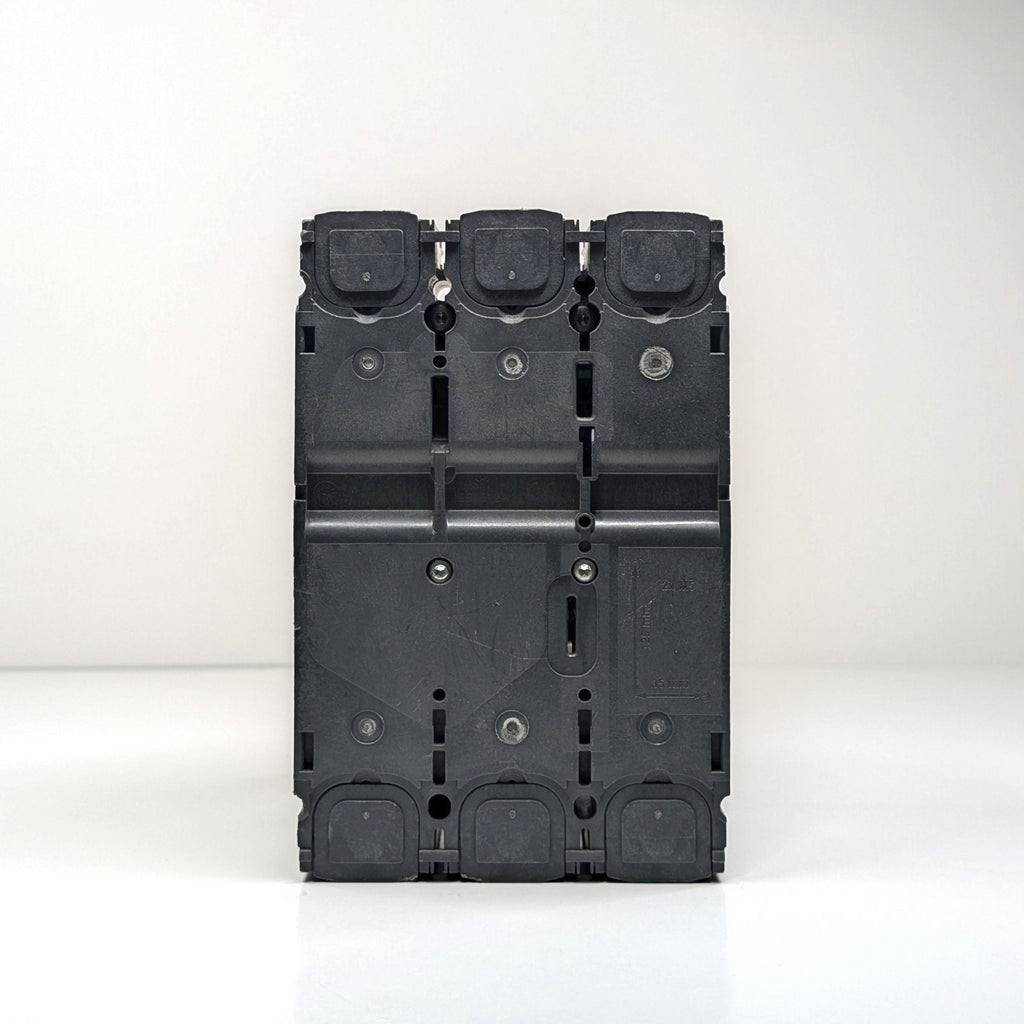

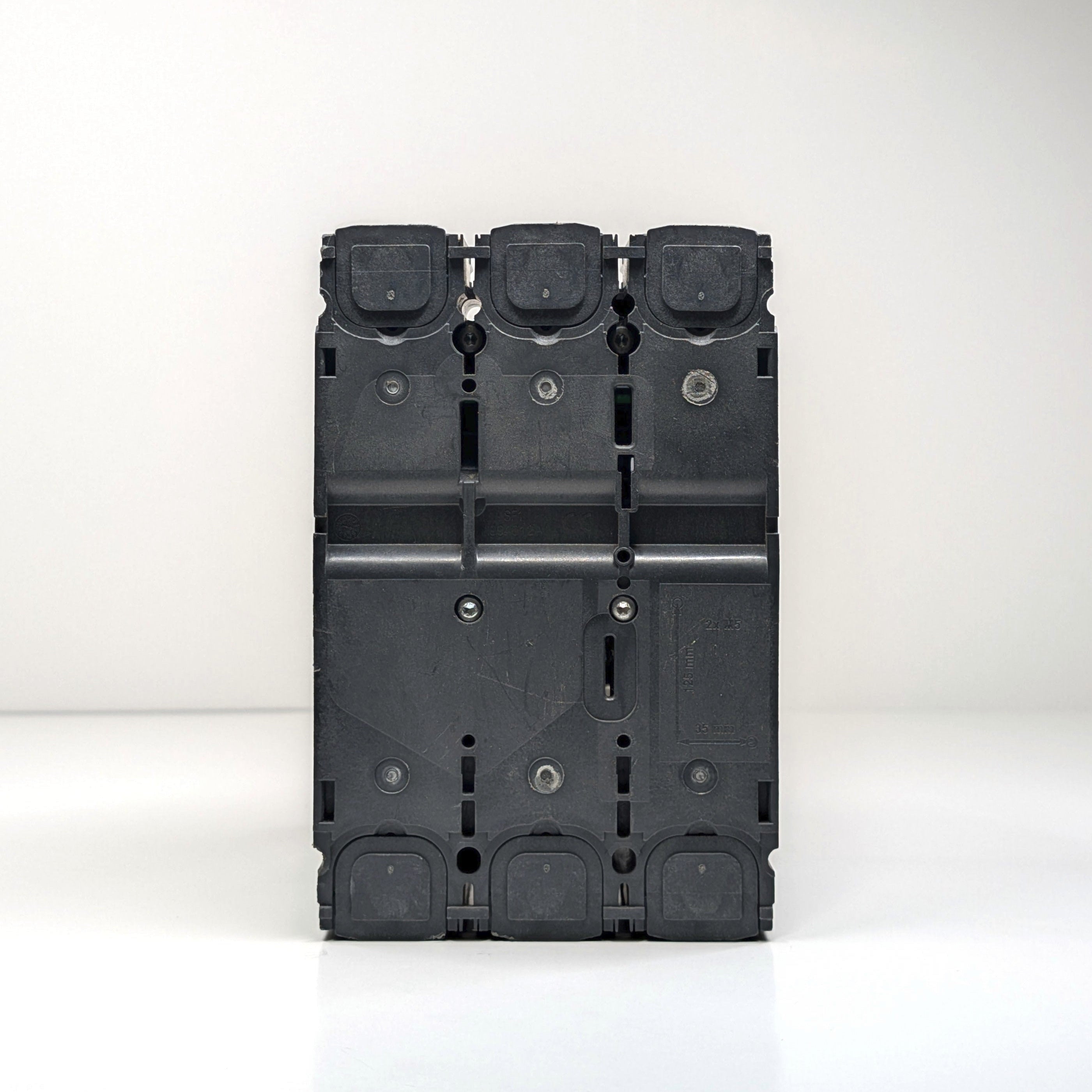

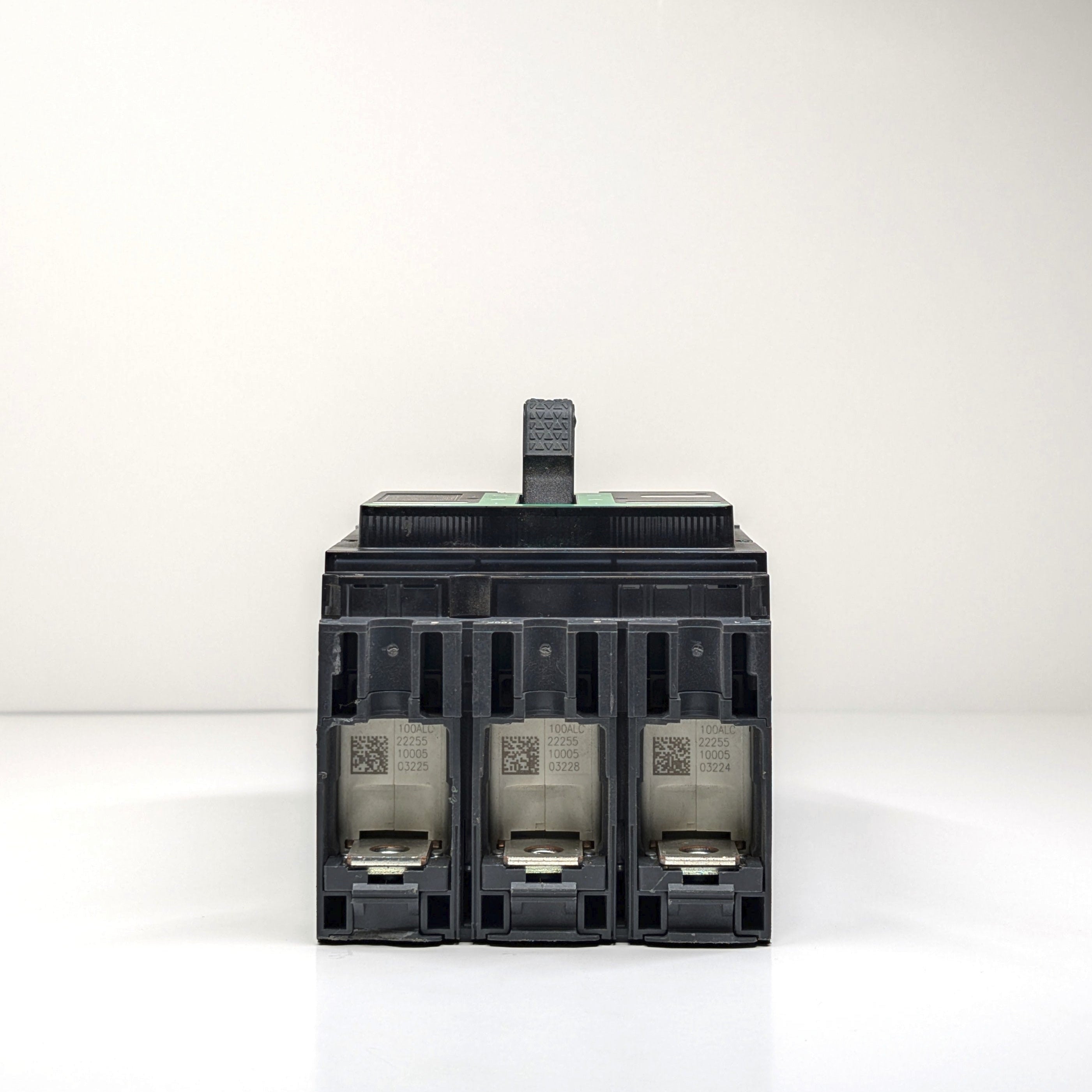

Square D NSX100F 3 Pole Circuit Breaker
Pickup available at 2201 Midway Rd ste 314
Usually ready in 2 hours
The Square D NSX100F is a 100 Amp, 3-pole molded case circuit breaker from the ComPact NSX range, engineered for high-performance protection in commercial and industrial electrical systems. This fixed-mount breaker features an advanced electronic trip unit that provides precise overcurrent and short-circuit protection. Its compact design allows for optimized space within switchboards and control panels, while the "F" interrupting class ensures reliable performance in standard electrical environments.
Specifications
| Brand | Square D (Schneider Electric) |
| Series | ComPact NSX100 |
| Amperage | 100 |
| Voltage | 690V AC |
| Poles | 3 |
| Phase | 3 |
| Interrupting Rating | 36 kAIC at 415V AC |
| Frame Type | NSX100 |
| Protection | Electronic (Micrologic trip unit) |
| Terminal | Front Connection / Box Lugs |
| Wire Size | Up to 95 mm² (Copper/Aluminum) |
| MPN | NSX100F |
| UPC | 3606480000300 |
