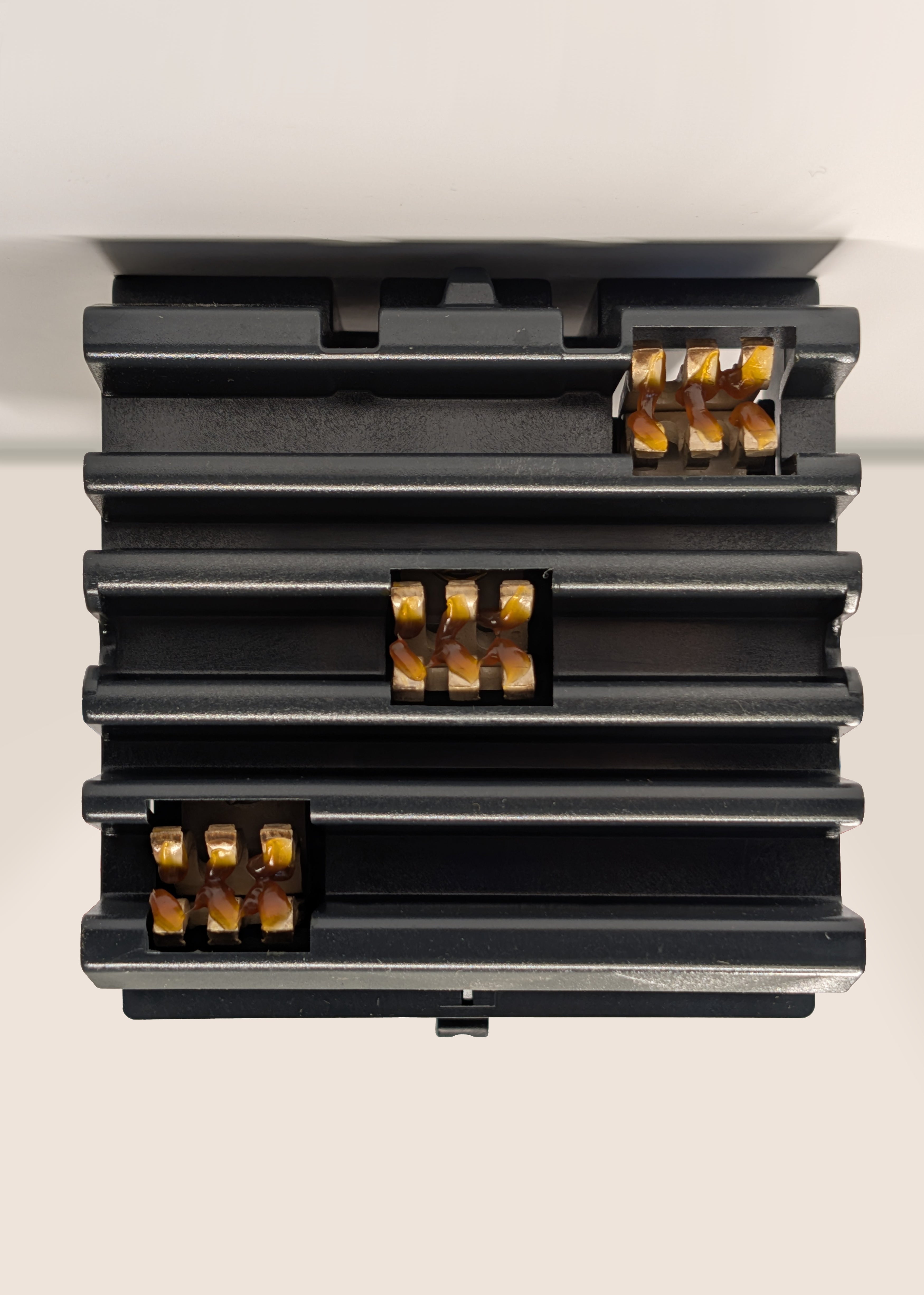

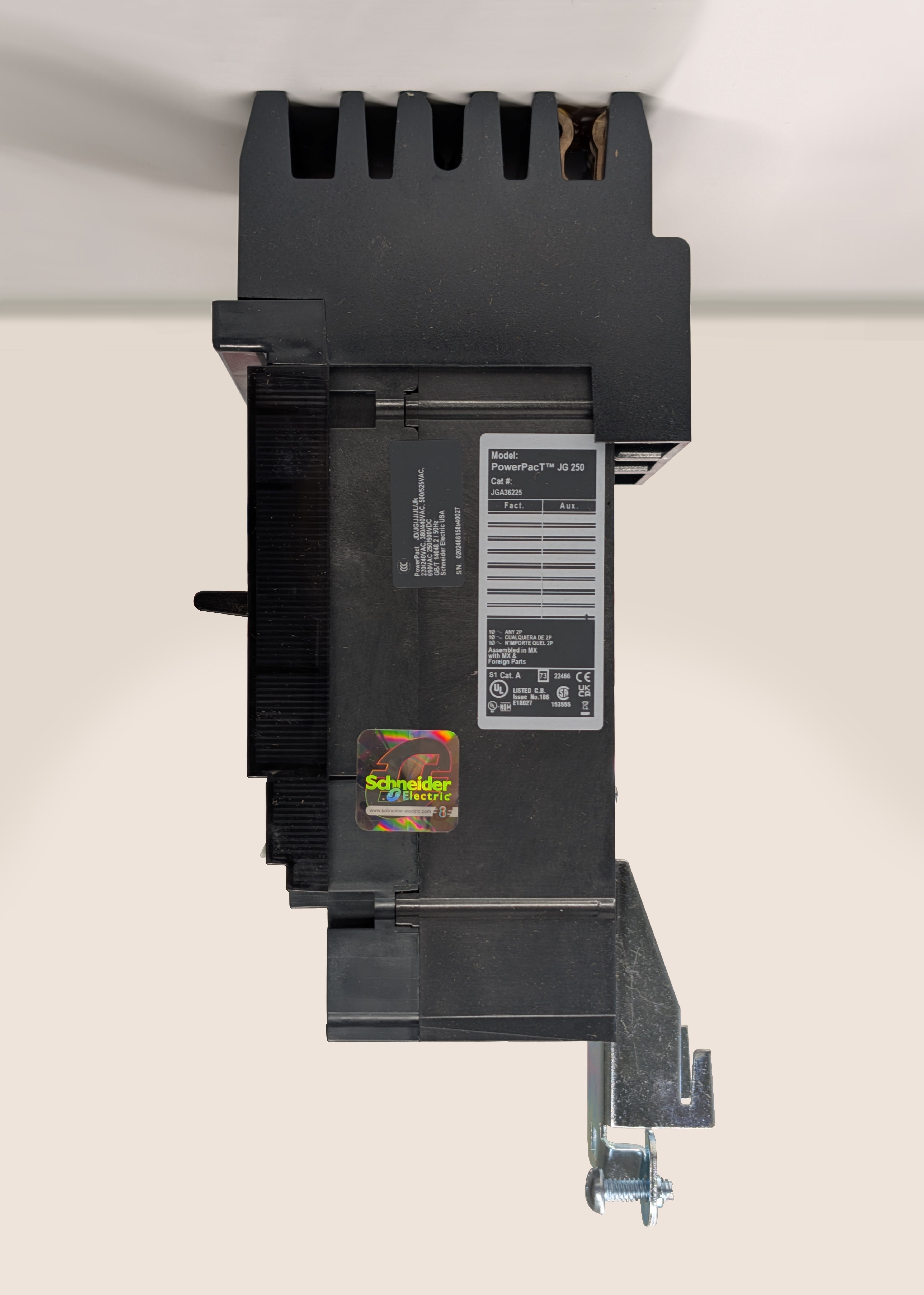

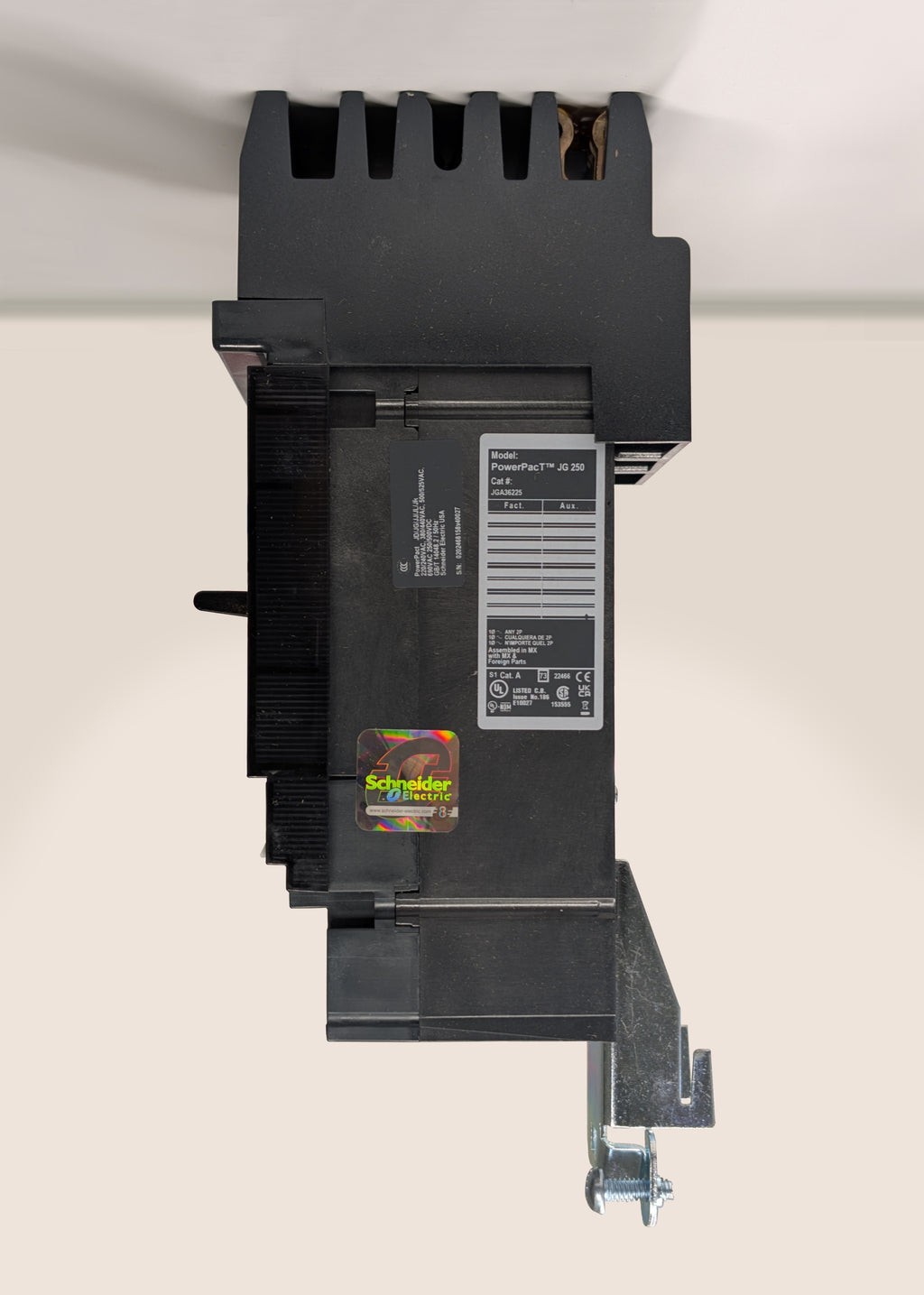

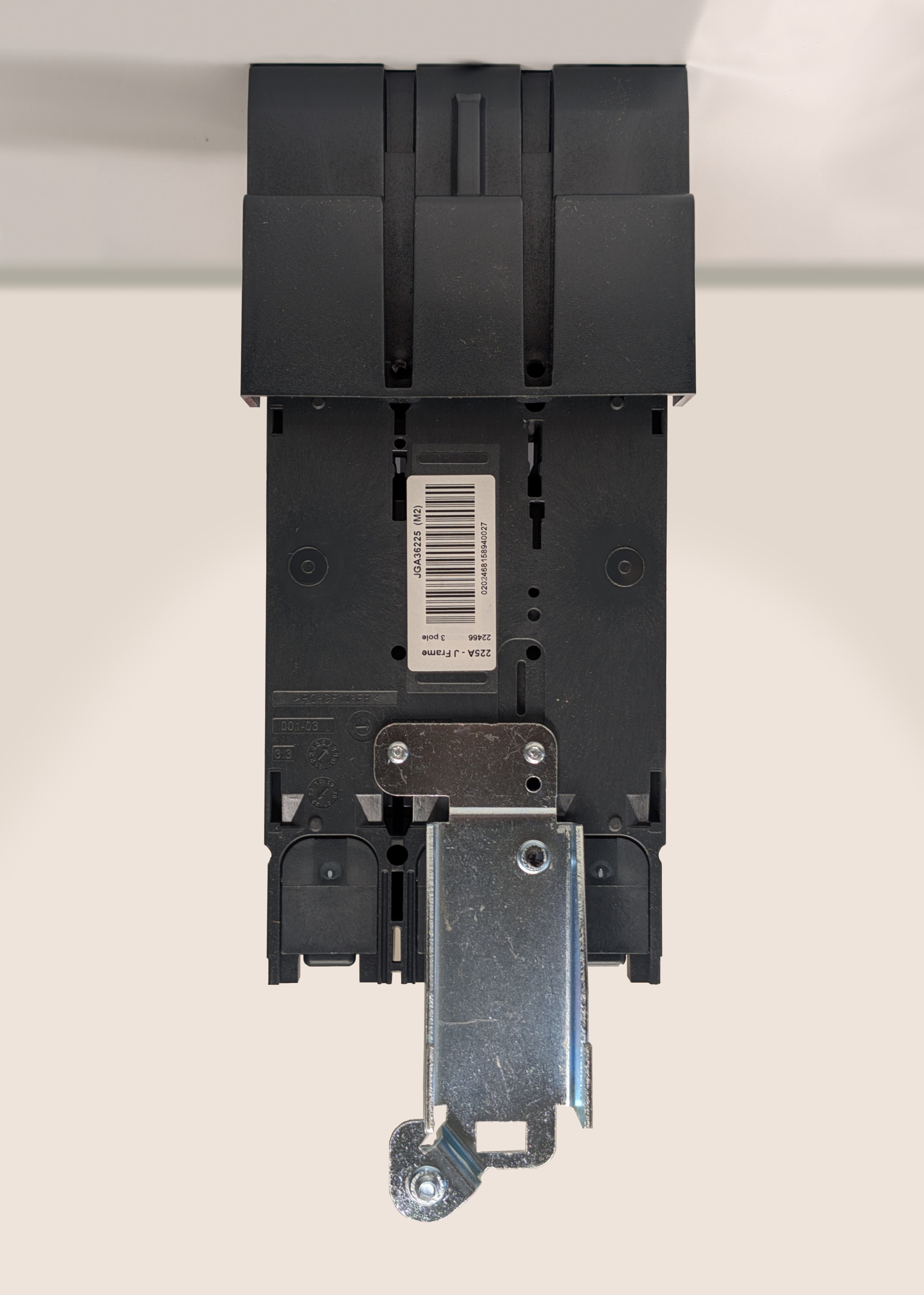

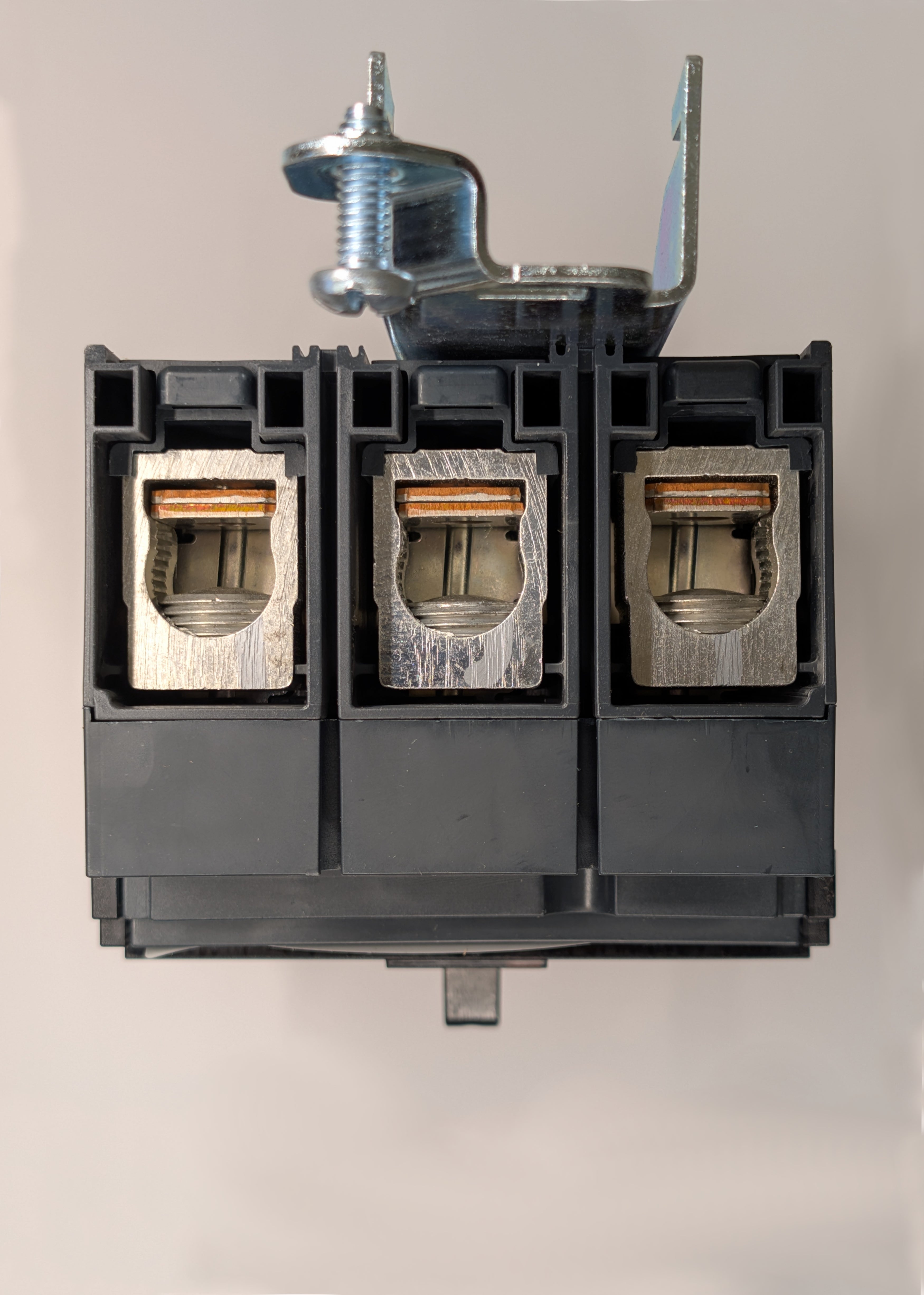

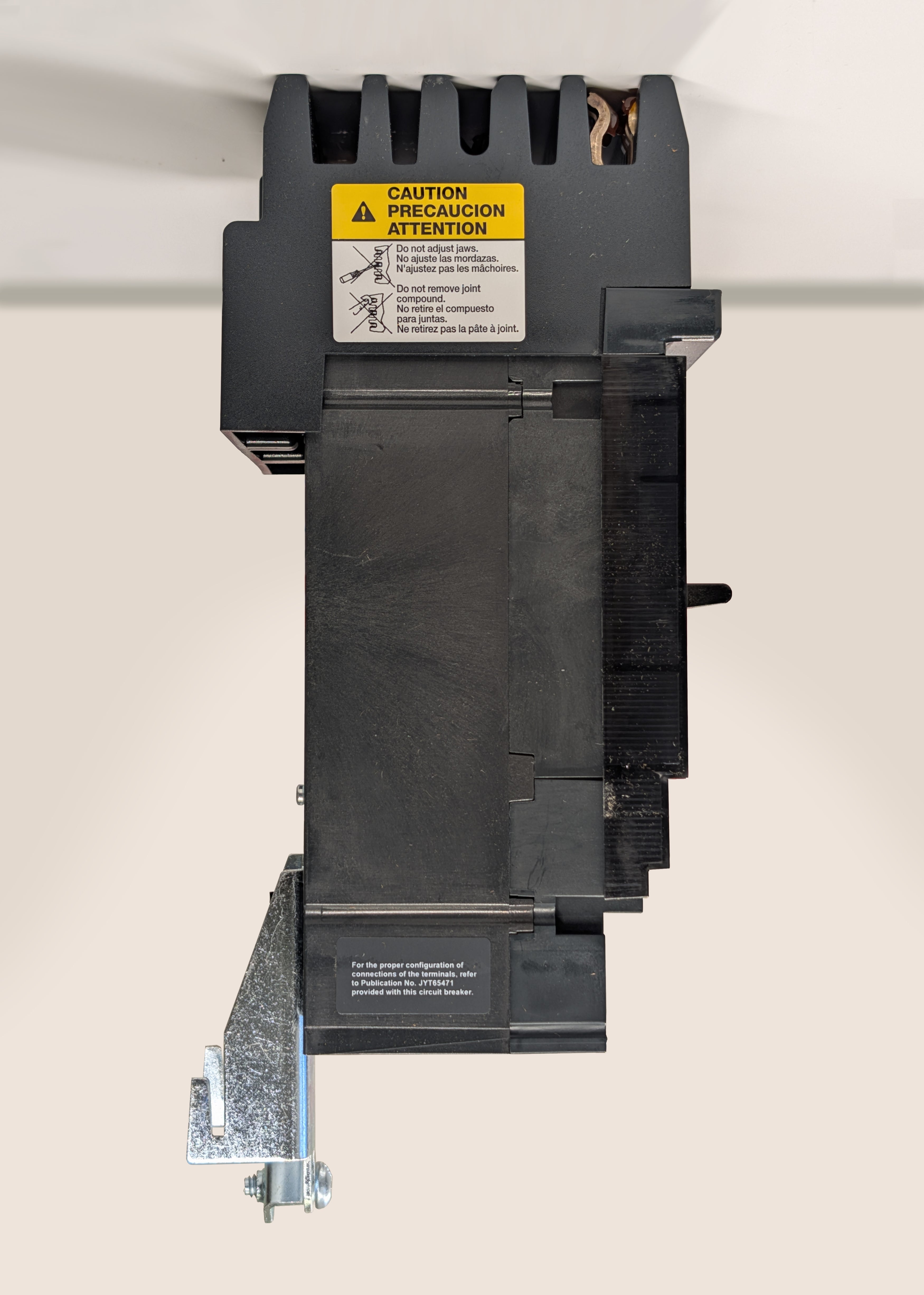

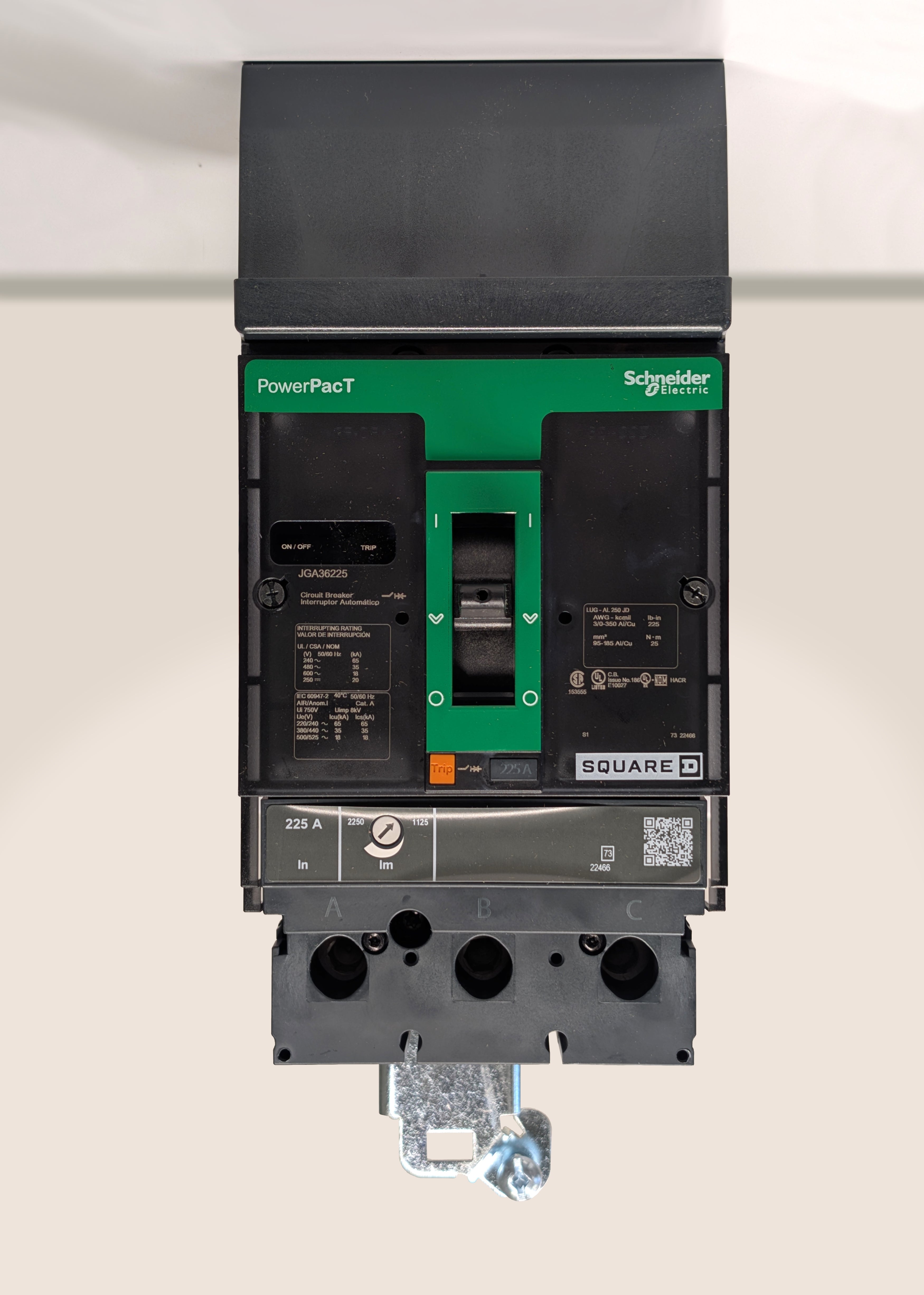

Square D JGA36225 3 Pole Circuit Breaker
$950.00
Skip to product information
In stock
Square D JGA36225 3 Pole Circuit Breaker
$950.00
Shipping calculated at checkout.
Pickup available at 2201 Midway Rd ste 314
Usually ready in 2 hours
PowerPacT J-Frame circuit breakers protect electrical systems from overloads and short circuits. They feature thermal magnetic or MicroLogic electronic trip protection and offer 18kA breaking capacity at 600VAC. Equipped with dual-break rotating contacts, they minimize peak current during faults. These breakers include a push-to-trip button and are available in 2 and 3-pole unit mount and I-Line options for easy installation. The 225A, 3-pole model has an 80% continuous current rating and complies with UL, CSA, NOM, IEC standards, and is CE marked.
Specifications
|
Brand |
Square D |
|---|---|
|
Series |
PowerPact J-Frame |
|
Amperage |
225 |
|
Voltage |
600V AC |
|
Poles |
3 |
|
Phase |
3 |
|
Interrupting Rating |
100kAIC at 240V, 65kAIC at 480V, 25kAIC at 600V |
|
Frame Type |
J-Frame (I-Line) |
|
Protection |
Thermal Magnetic |
|
Terminal |
I-Line connection (Line) / Load side lug |
|
Mpn |
JGA36225 |
|
Upc |
785901795728 |
