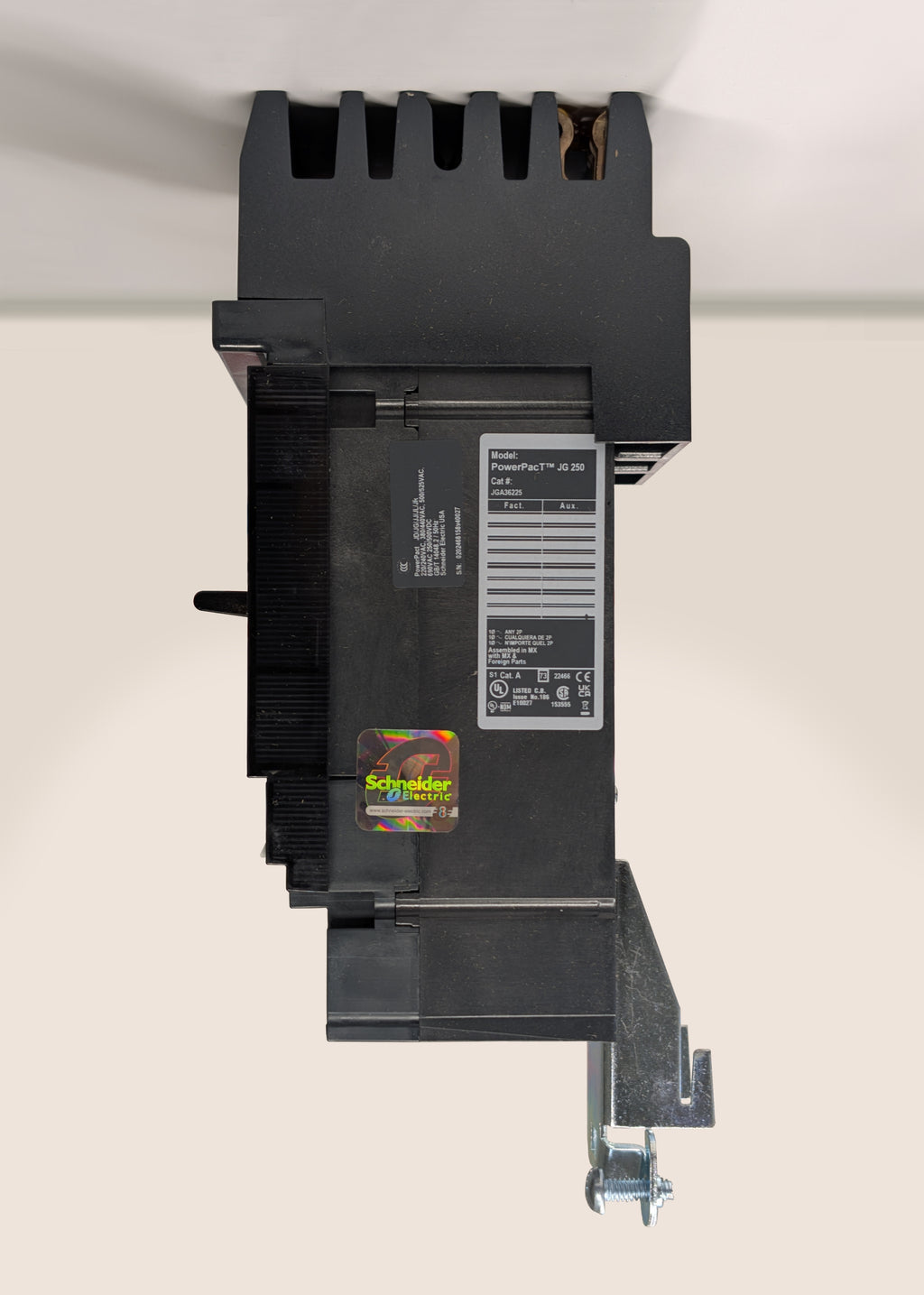

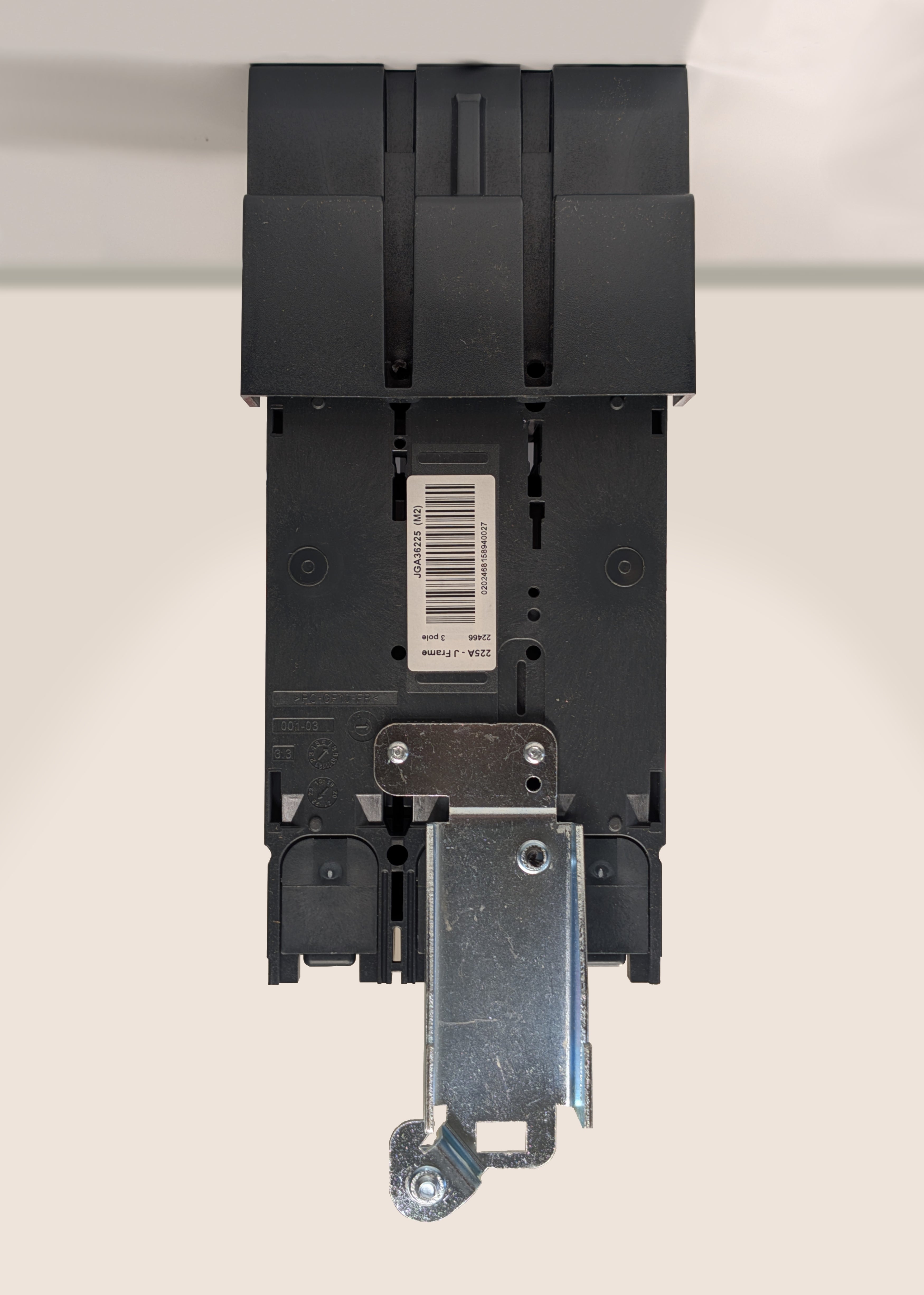

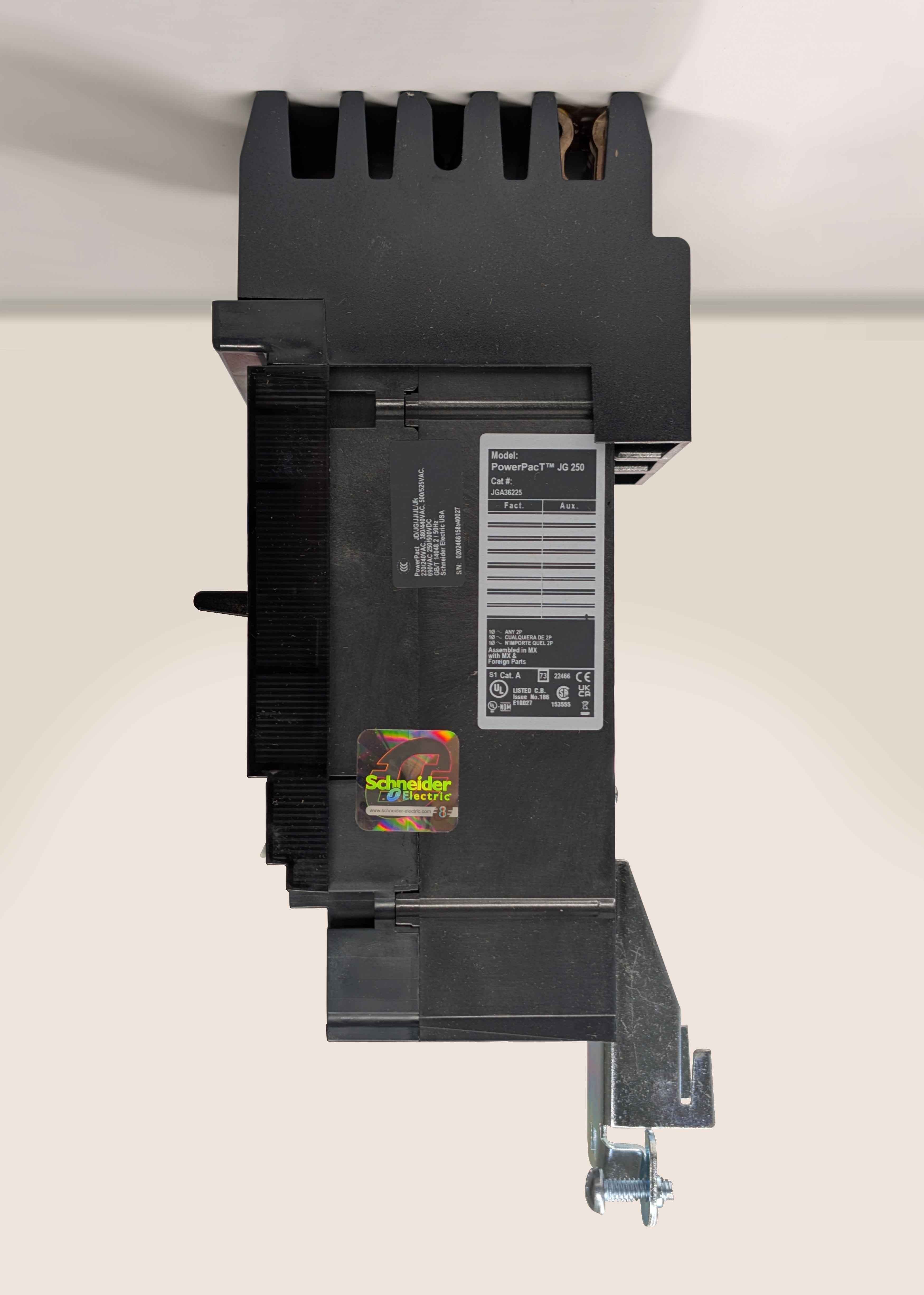

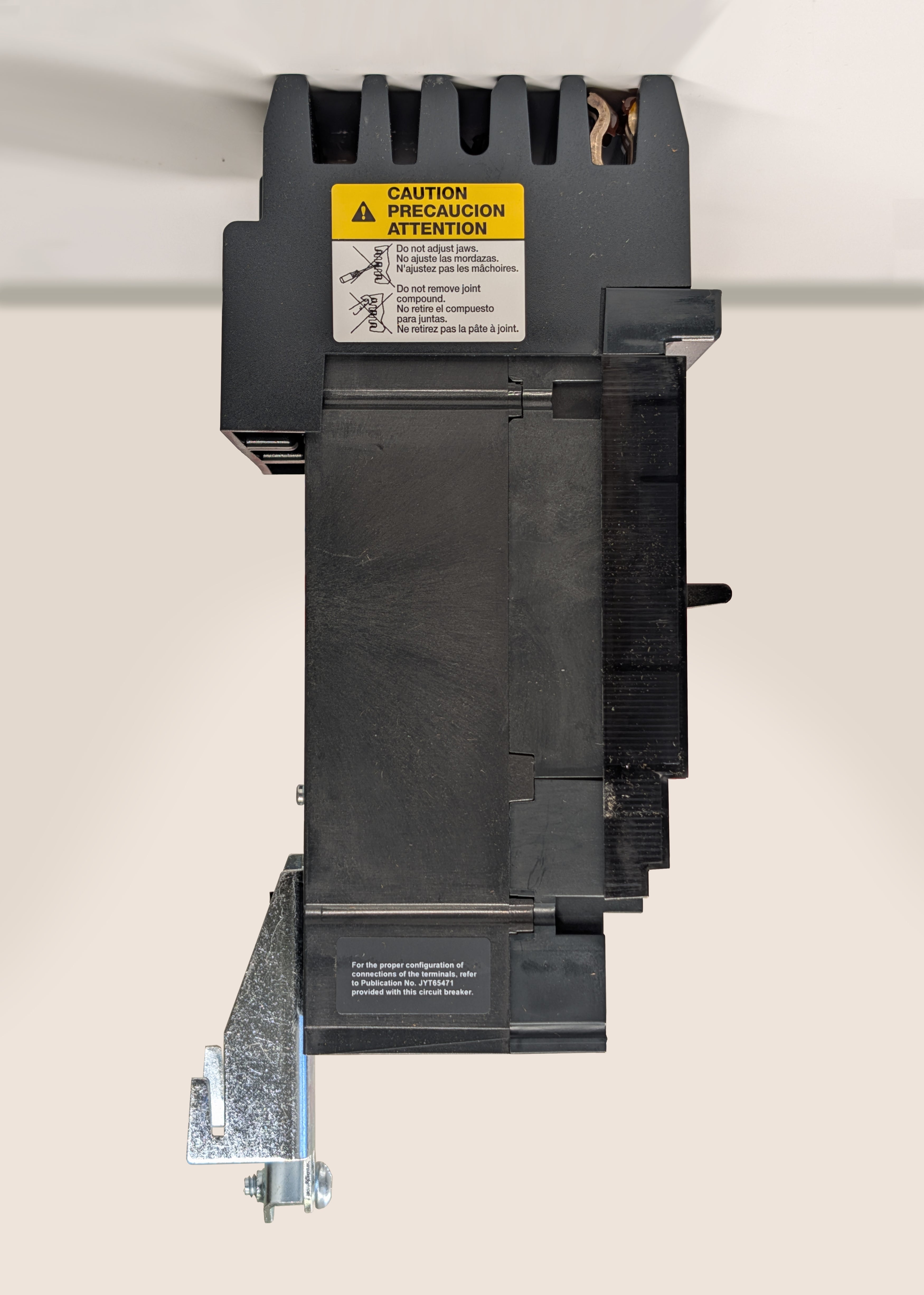

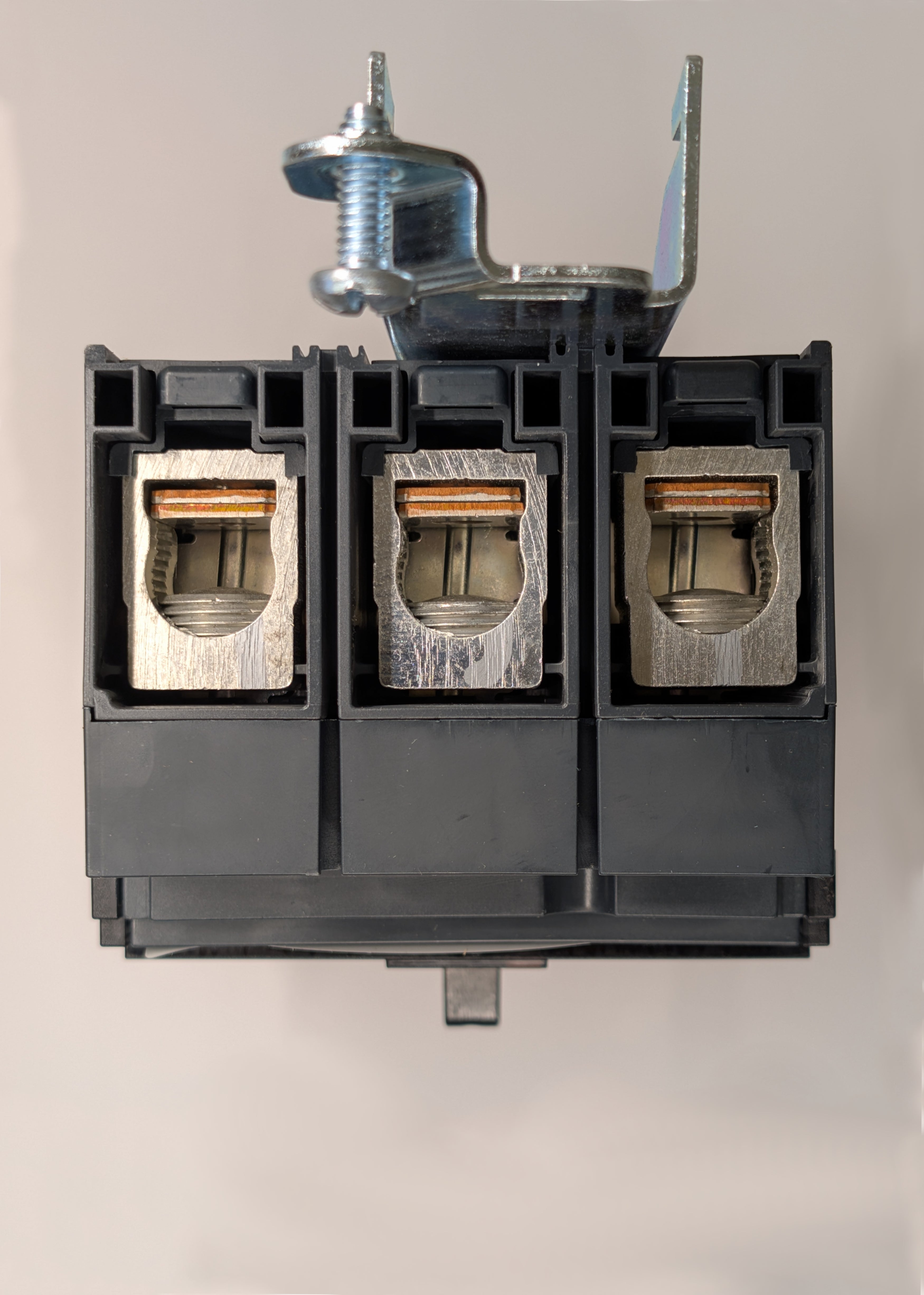

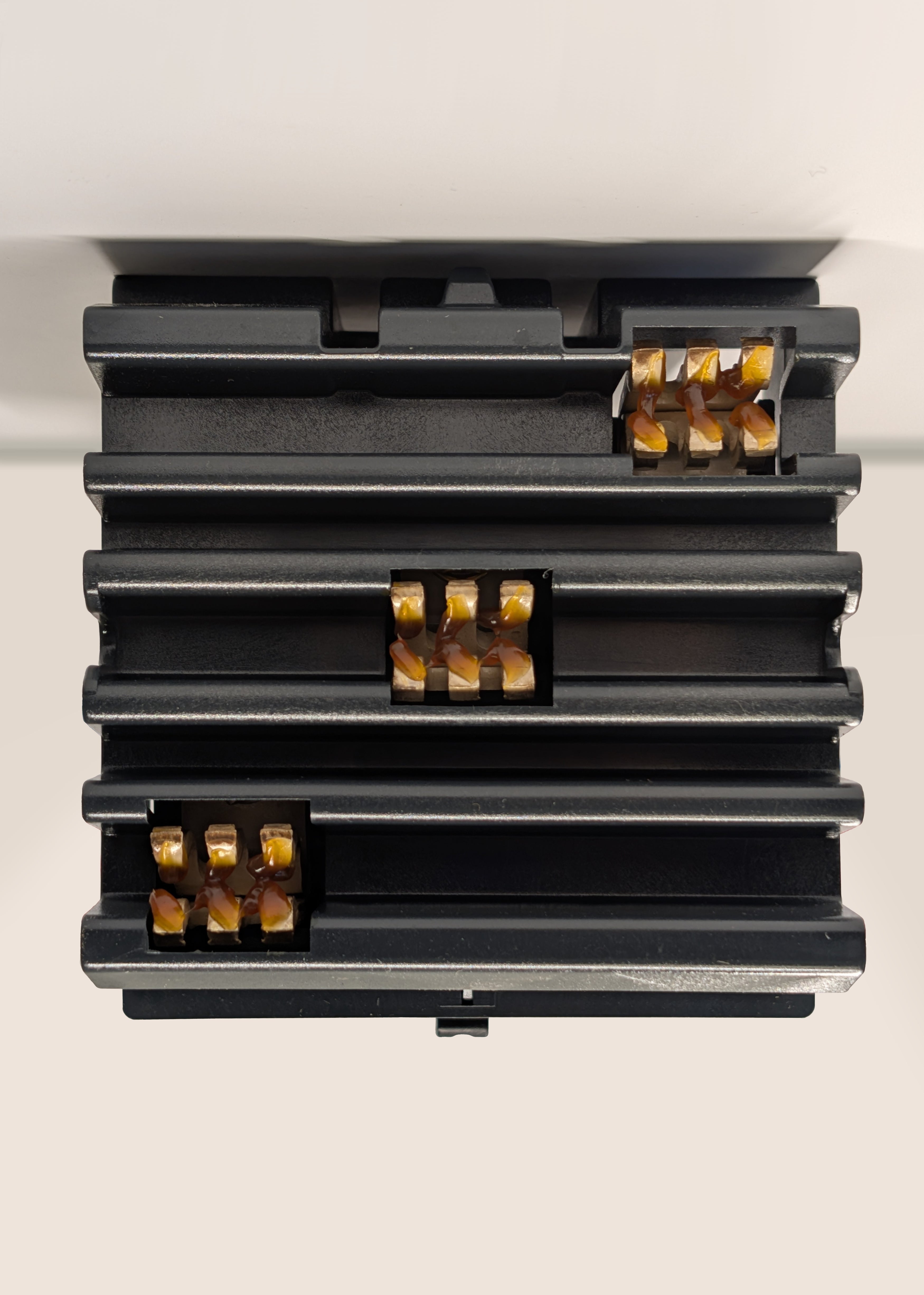

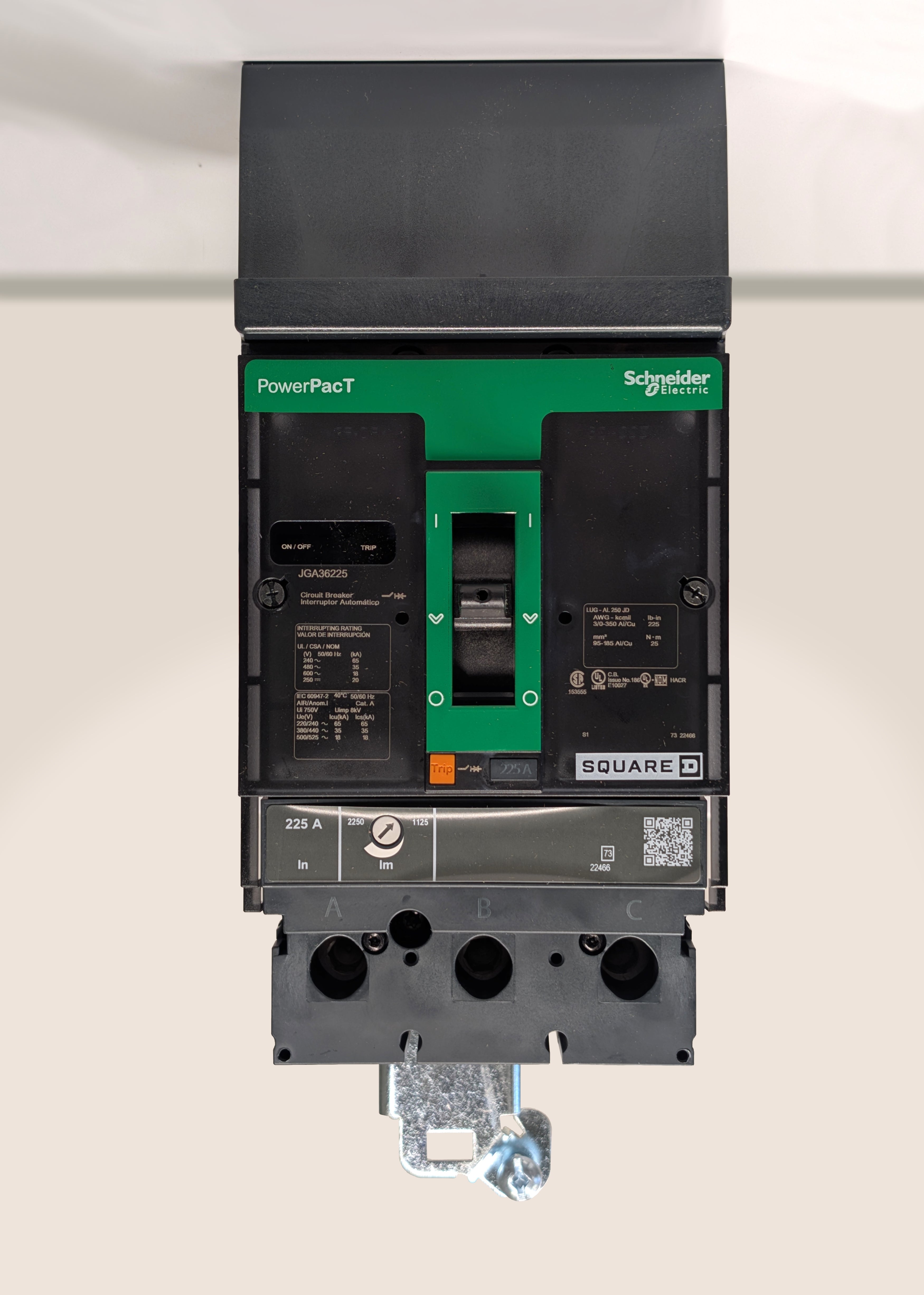

Square D HJA36150U33X 3 Pole Circuit Breaker
$1,500.00
Skip to product information
1 left
Square D HJA36150U33X 3 Pole Circuit Breaker
$1,500.00
Shipping calculated at checkout.
Pickup available at 2201 Midway Rd ste 314
Usually ready in 2 hours
PowerPacT H-Frame circuit breakers protect electrical systems from overloads and short circuits. They offer thermal magnetic or Micrologic electronic trip protection units. This model includes a Micrologic Standard 3.2S trip unit and an LSI function with a 25kA breaking capacity at 600VAC. All breakers feature dual-break rotating contacts to minimize peak current during faults. They have a push-to-trip button for manual operation and are available in 2 and 3-pole configurations. PowerPacT H circuit breakers meet UL, CSA, NOM, and IEC standards and are CE marked.
Specifications
|
Brand |
Square D |
|---|---|
|
Series |
PowerPact H-Frame |
|
Amperage |
150 |
|
Voltage |
600V AC |
|
Poles |
3 |
|
Phase |
3 |
|
Interrupting Rating |
100kAIC at 240V, 65kAIC at 480V, 25kAIC at 600V |
|
Frame Type |
H-Frame (I-Line) |
|
Protection |
Electronic (Micrologic 3.2 S -LSI) |
|
Terminal |
I-Line connection (Line) / Load side lug |
|
Mpn |
HJA36150U33X |
|
Upc |
785901614005 |
