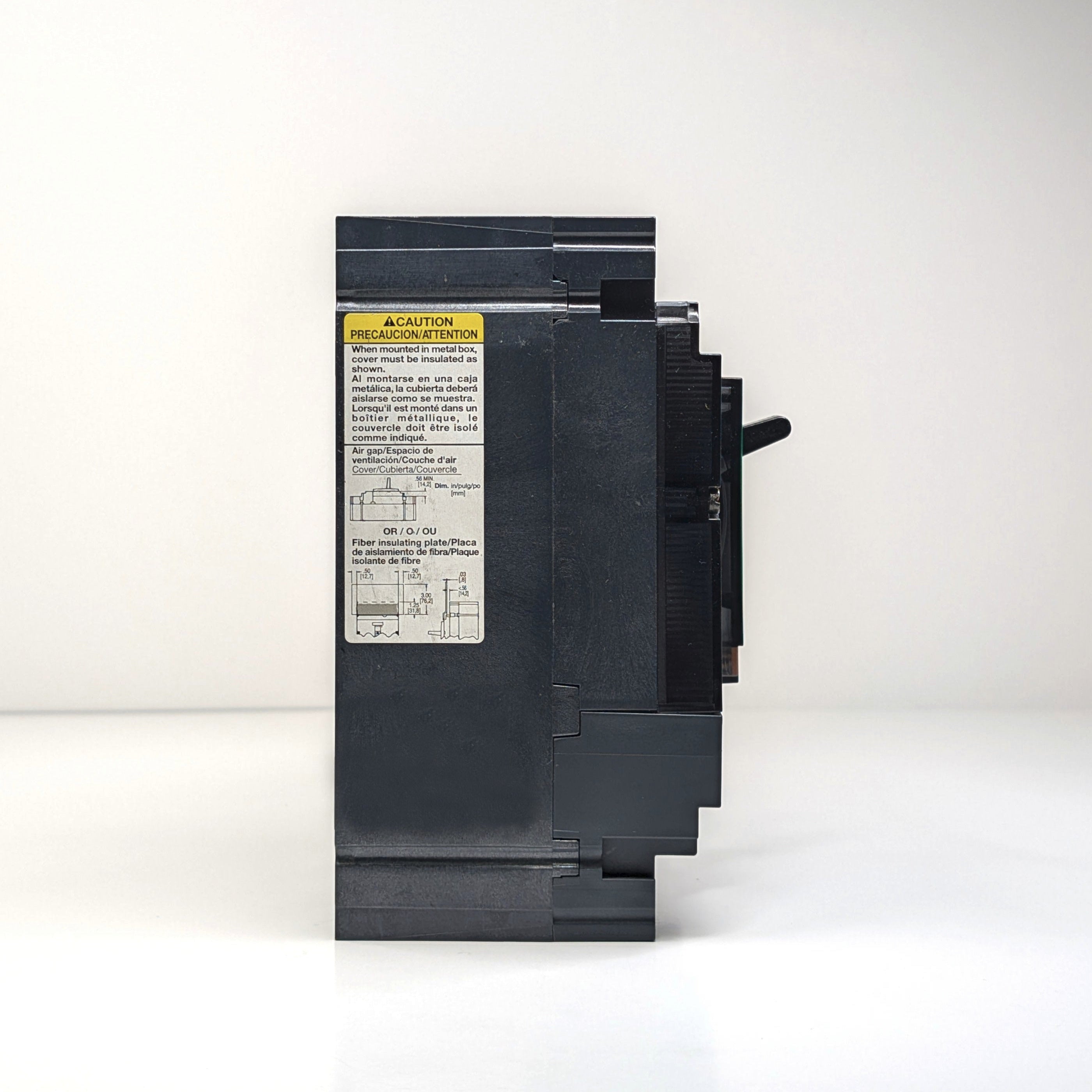

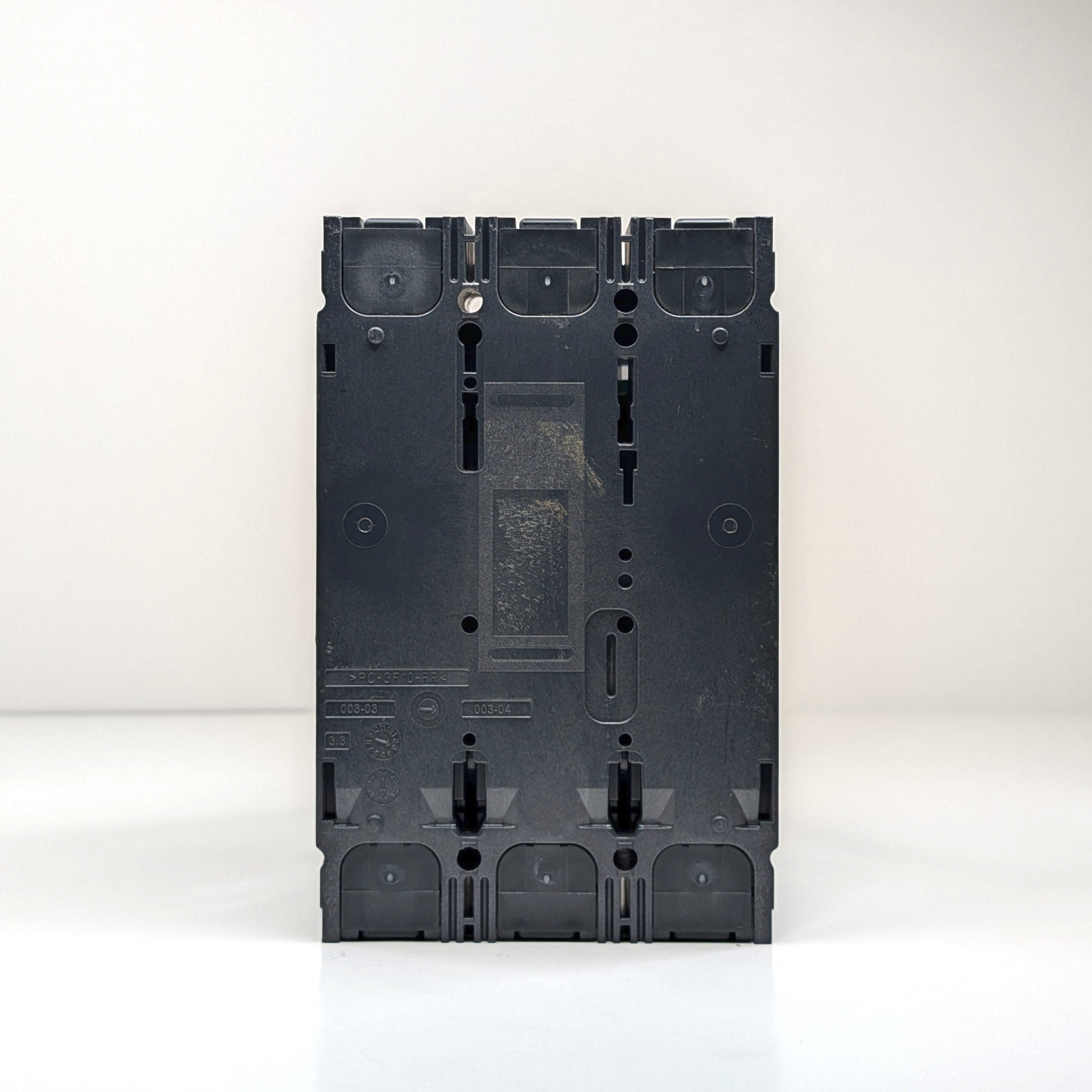

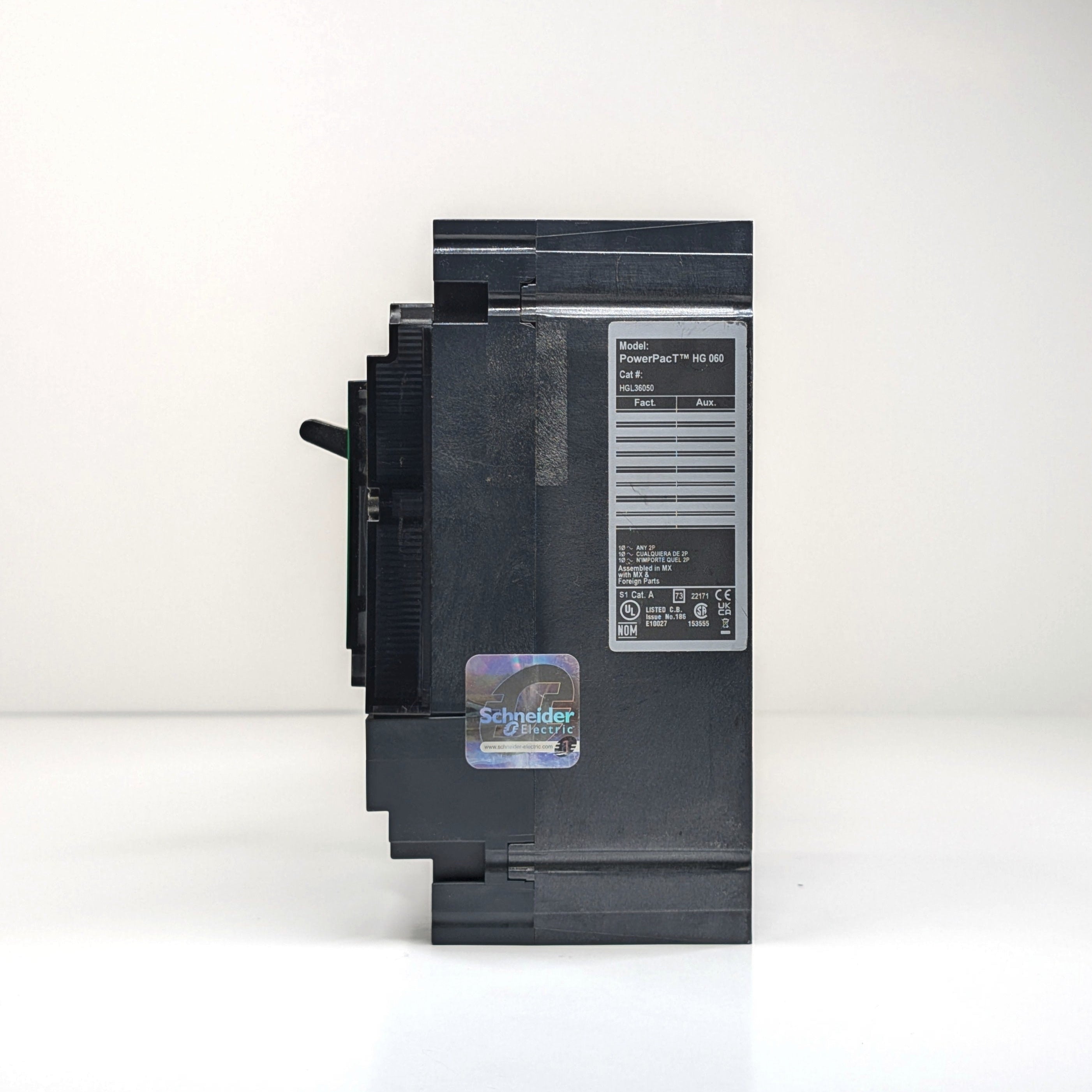

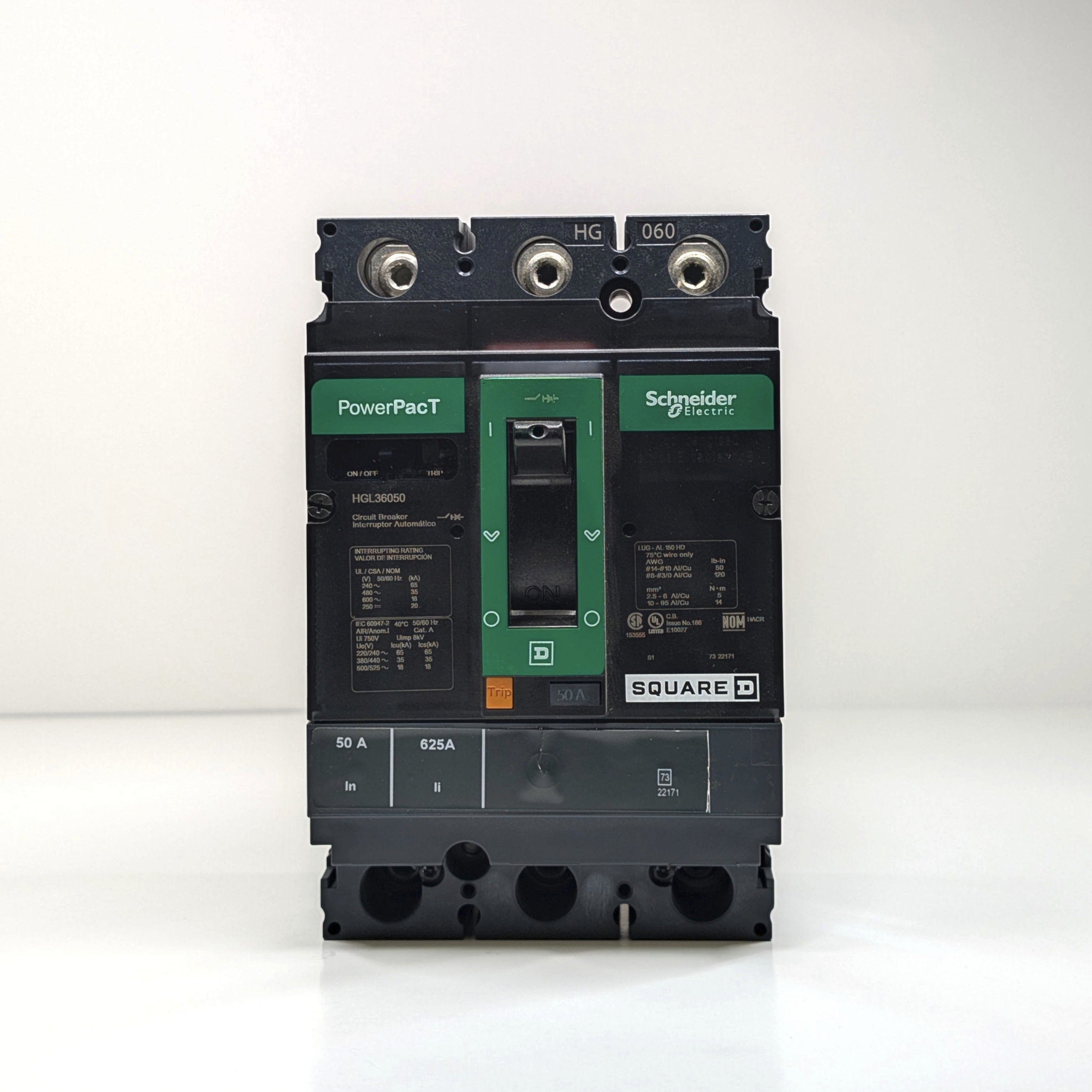

Square D HGL36050 3 Pole Circuit Breaker
$375.00
Shipping calculated at checkout.
The Square D HGL36050 is a 50 Amp, 3-pole molded case circuit breaker from the PowerPacT H-Frame family, designed for heavy-duty commercial and industrial applications. This thermal-magnetic breaker provides reliable overcurrent protection and features the Visi-Trip indicator for easy status identification. Its unit-mount design with line and load lugs allows for versatile installation in PowerPacT enclosures, switchboards, and as a main breaker in various panelboards.
Specifications
| Brand | Square D (Schneider Electric) |
| Series | PowerPacT H-Frame |
| Amperage | 50 |
| Voltage | 600V AC / 250V DC |
| Poles | 3 |
| Phase | 3 |
| Interrupting Rating | 65kA @ 240V / 35kA @ 480V / 18kA @ 600V |
| Frame Type | H-Frame (HG) |
| Protection | Thermal-Magnetic (Long-Time / Instantaneous) |

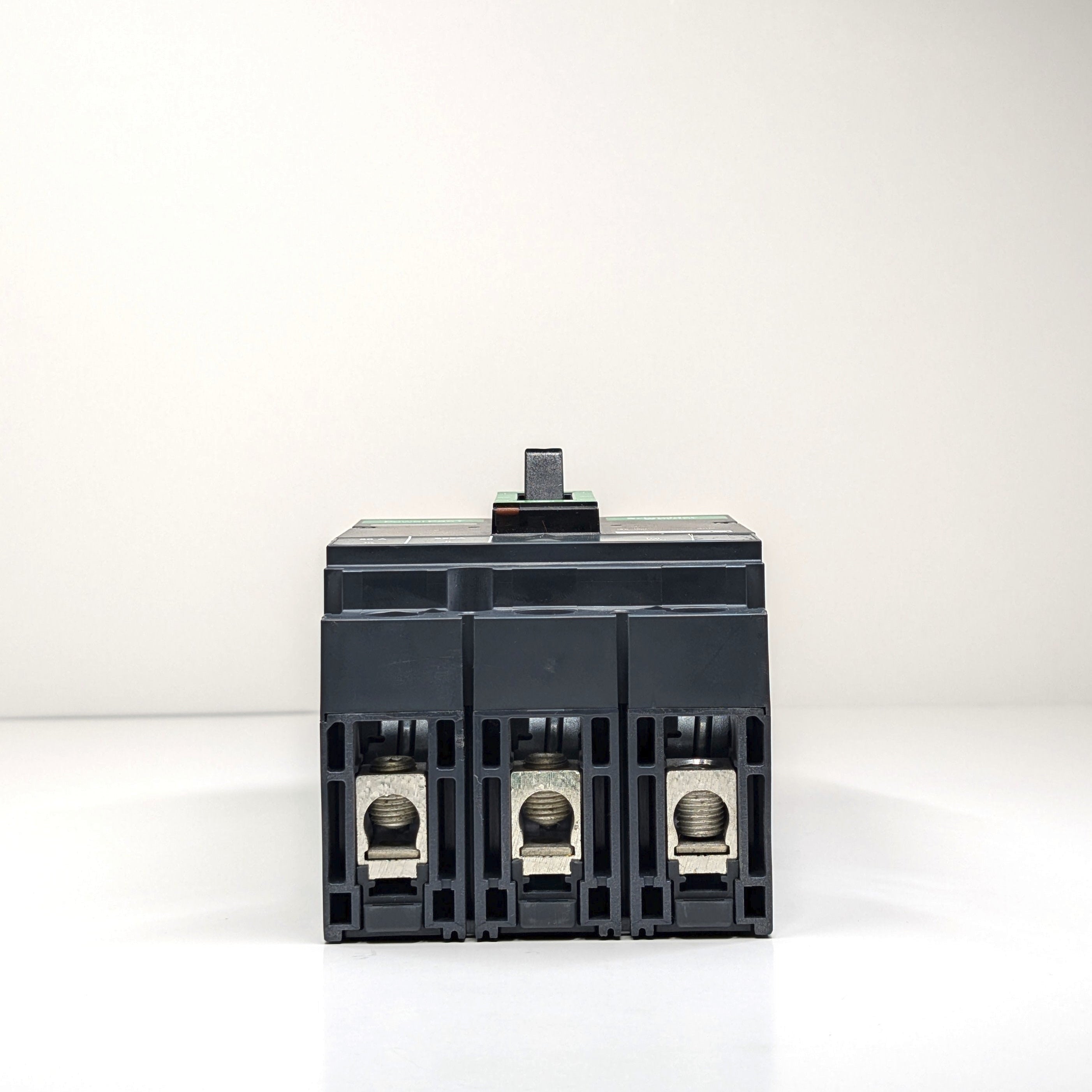

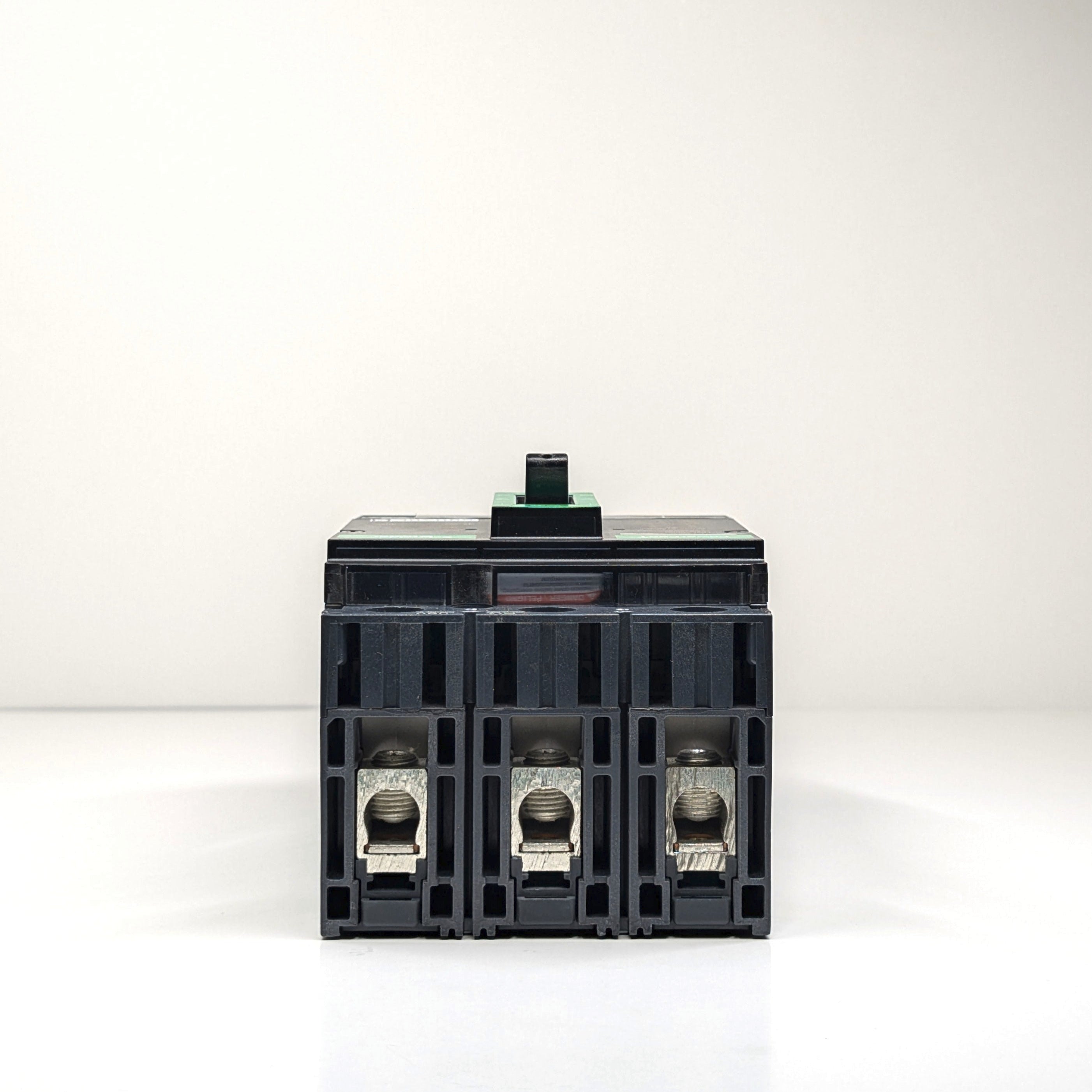

| Terminal | Line Lugs / Load Lugs |
| Wire Size | AWG #14 to #3/0 (Copper/Aluminum) |
| MPN | HGL36050 |
| UPC | 785901598763 |
