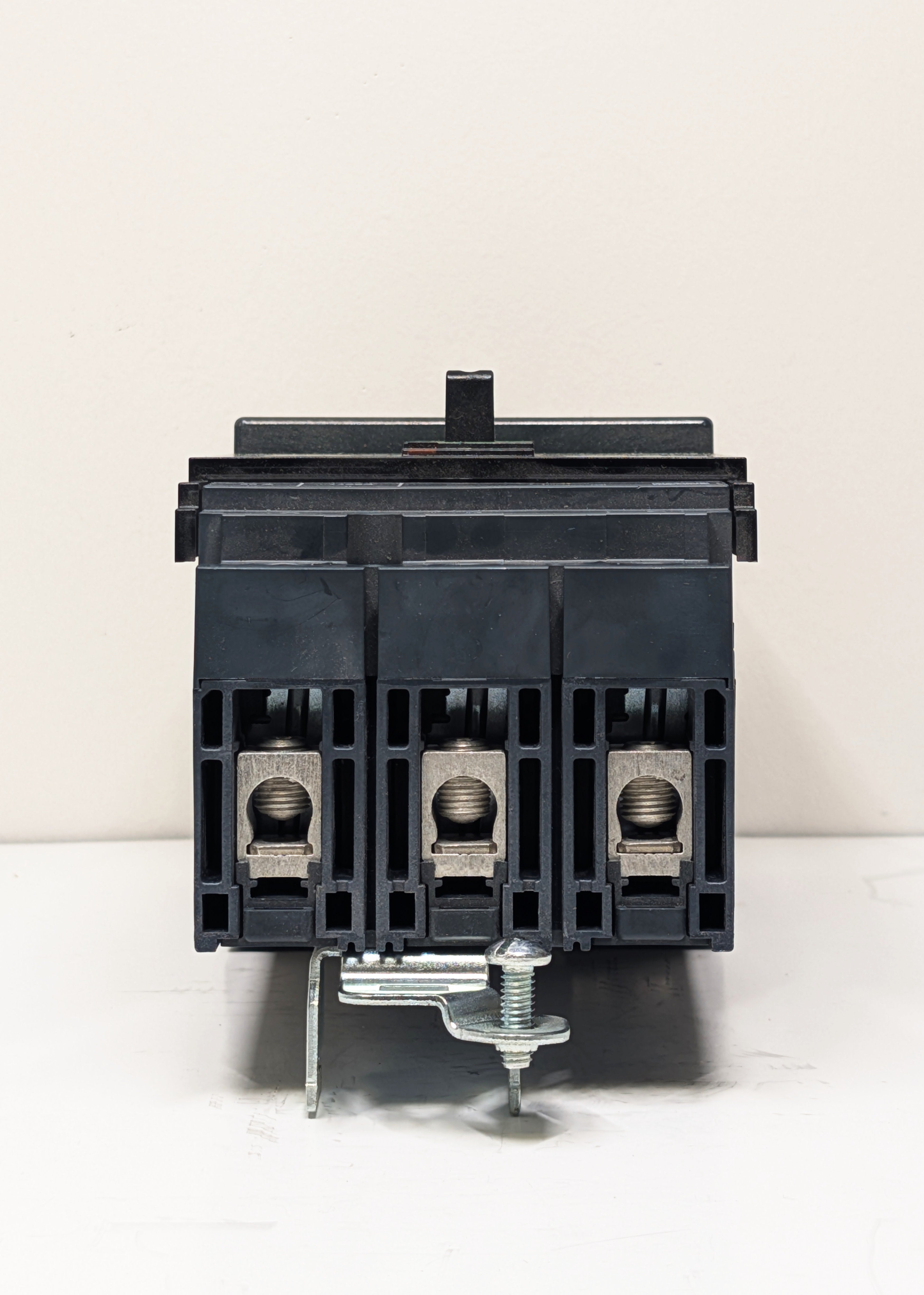

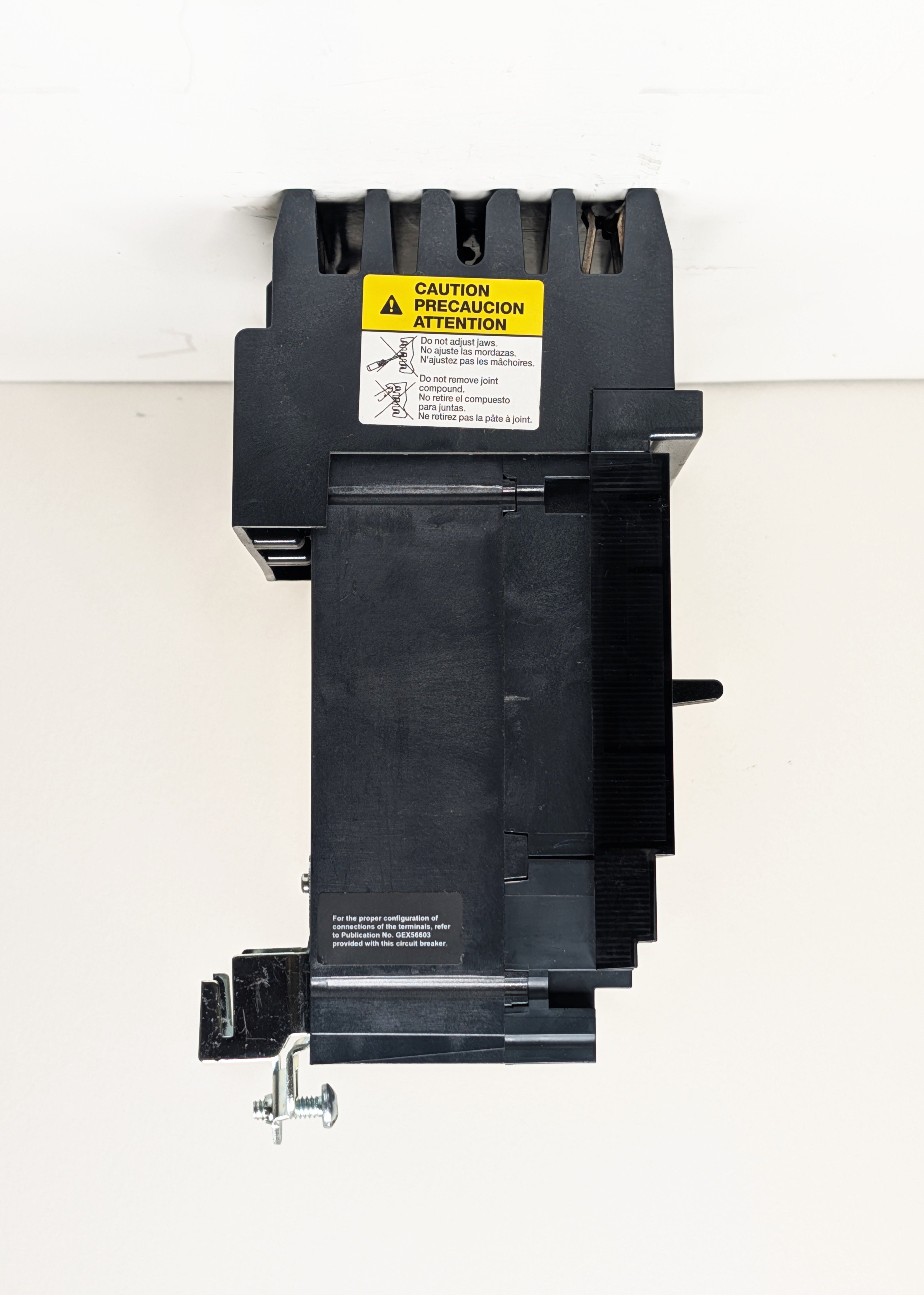

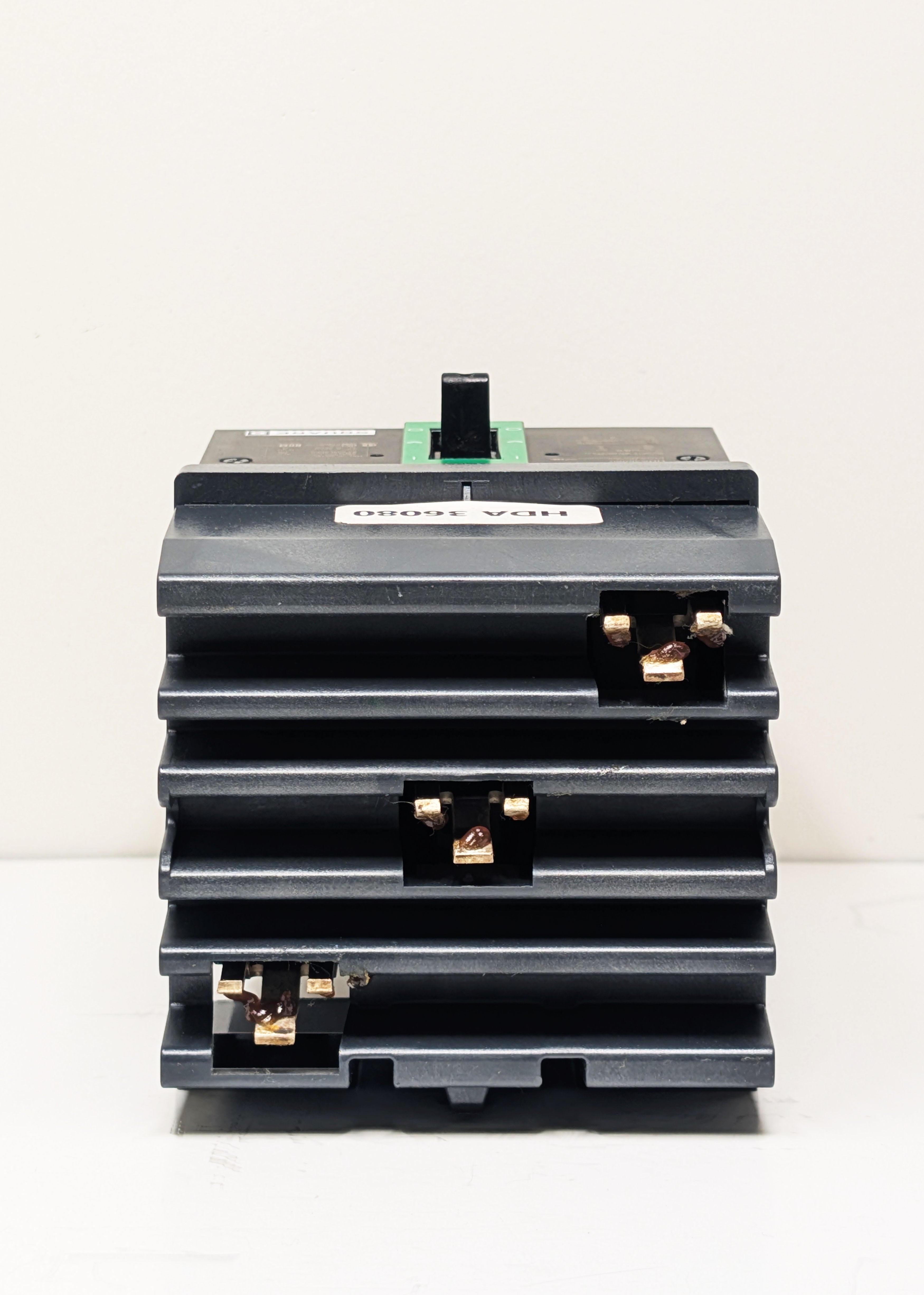

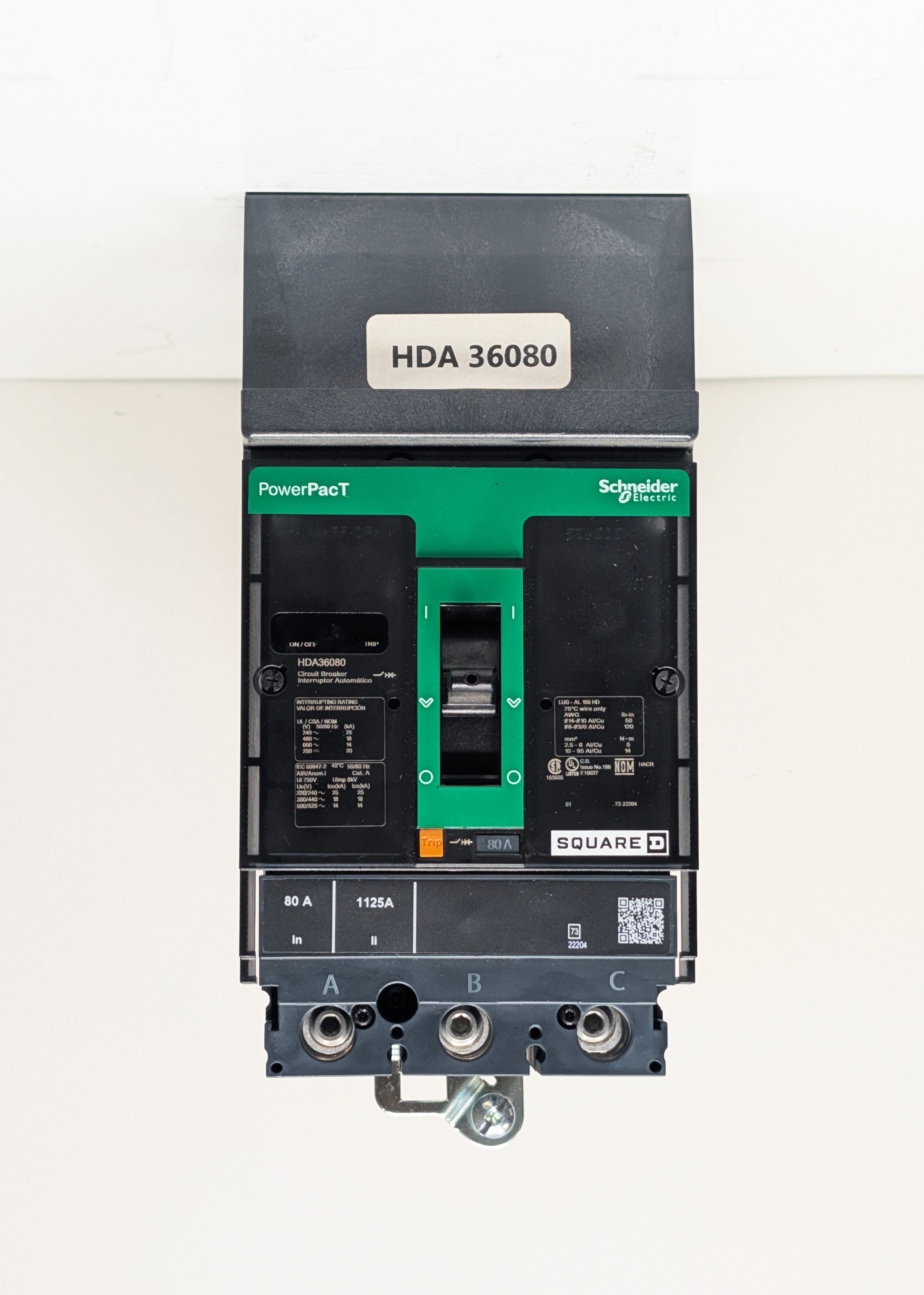

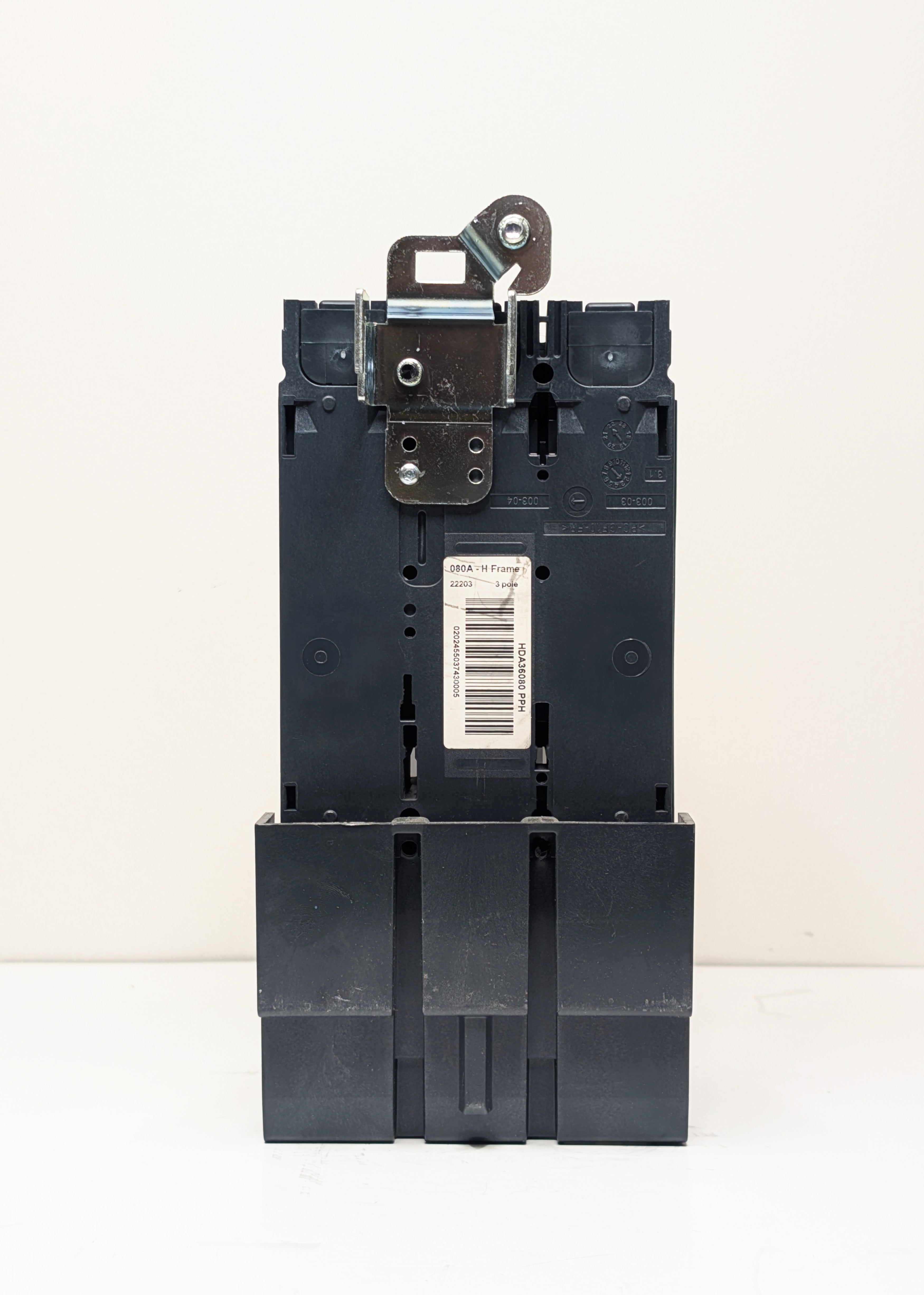

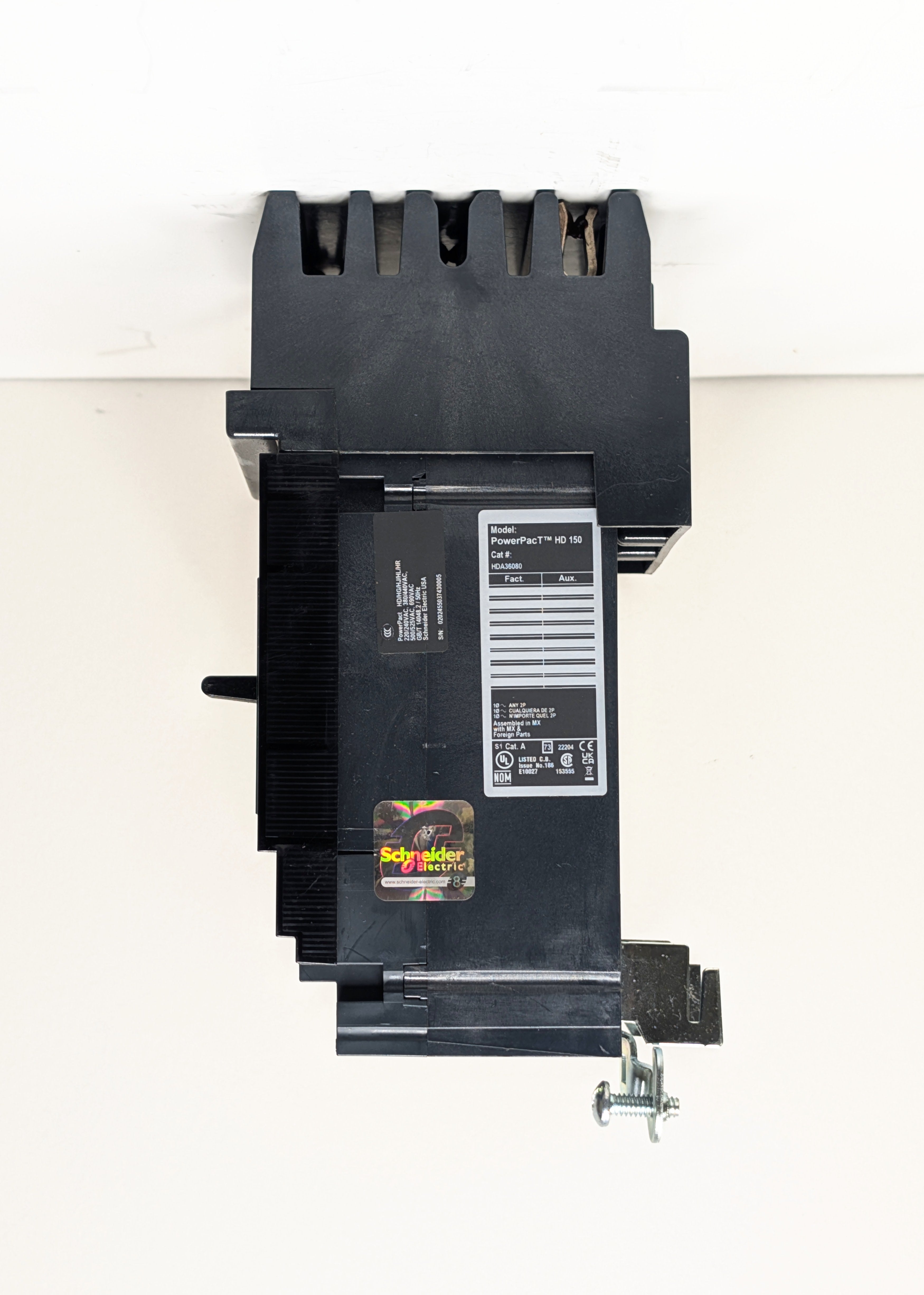

Square D HDA36080 3 Pole Circuit Breaker
$500.00
Skip to product information
8 left
Square D HDA36080 3 Pole Circuit Breaker
$500.00
Shipping calculated at checkout.
Pickup available at 2201 Midway Rd ste 314
Usually ready in 2 hours
The Square D HDA36080 is a 3-pole, 80 Amp molded case circuit breaker designed for the Square D I-Line distribution system. It is the go-to "workhorse" for standard commercial buildings. Because it is a D-rated breaker, it offers an interrupting capacity of 18kA at 480V. It uses the same compact H-Frame housing as the higher-rated versions, which saves significant space in the panelboard compared to older legacy breakers. It comes standard with the I-Line "plug-on" connection for the bus and mechanical lugs on the load side for easy wiring to your motor or branch circuit.
Specifications:
|
Brand |
Square D (Schneider Electric) |
|---|---|
|
Series |
PowerPact H-Frame (I-Line) |
|
Amperage |
80 |
|
Voltage |
600V AC / 250V DC |
|
Poles |
3 |
|
Phase |
3 |
|
Interrupting Rating |
25kAIC at 240V / 18kAIC at 480V / 14kAIC at 600V |
|
Frame Type |
H-Frame (D-Interrupting Level) |
|
Protection |
Thermal Magnetic |
|
Terminal |
I-Line (Line Side) / Mechanical Lugs (Load side) |
|
Mpn |
HDA36080 |
|
Upc |
785901412367 |
