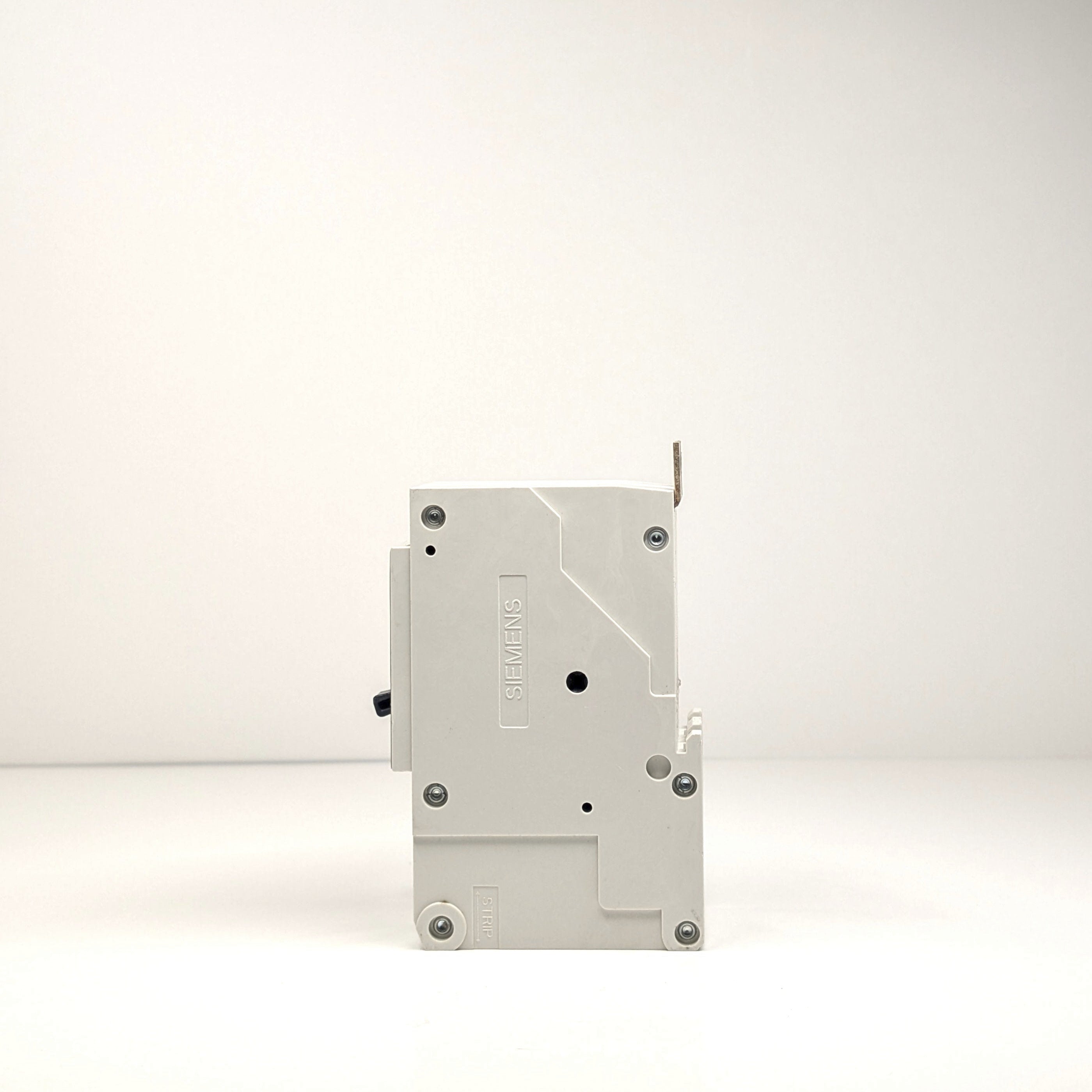

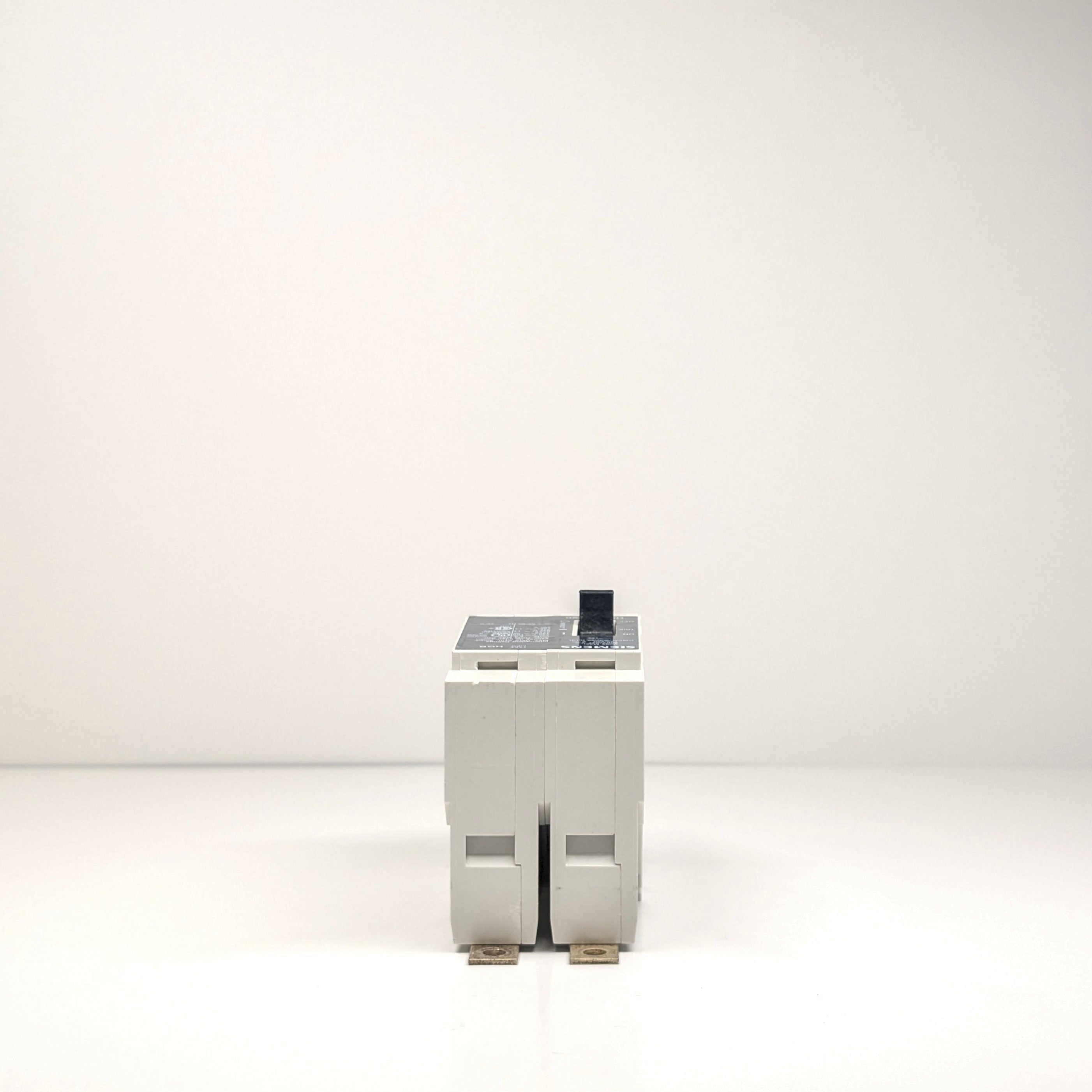

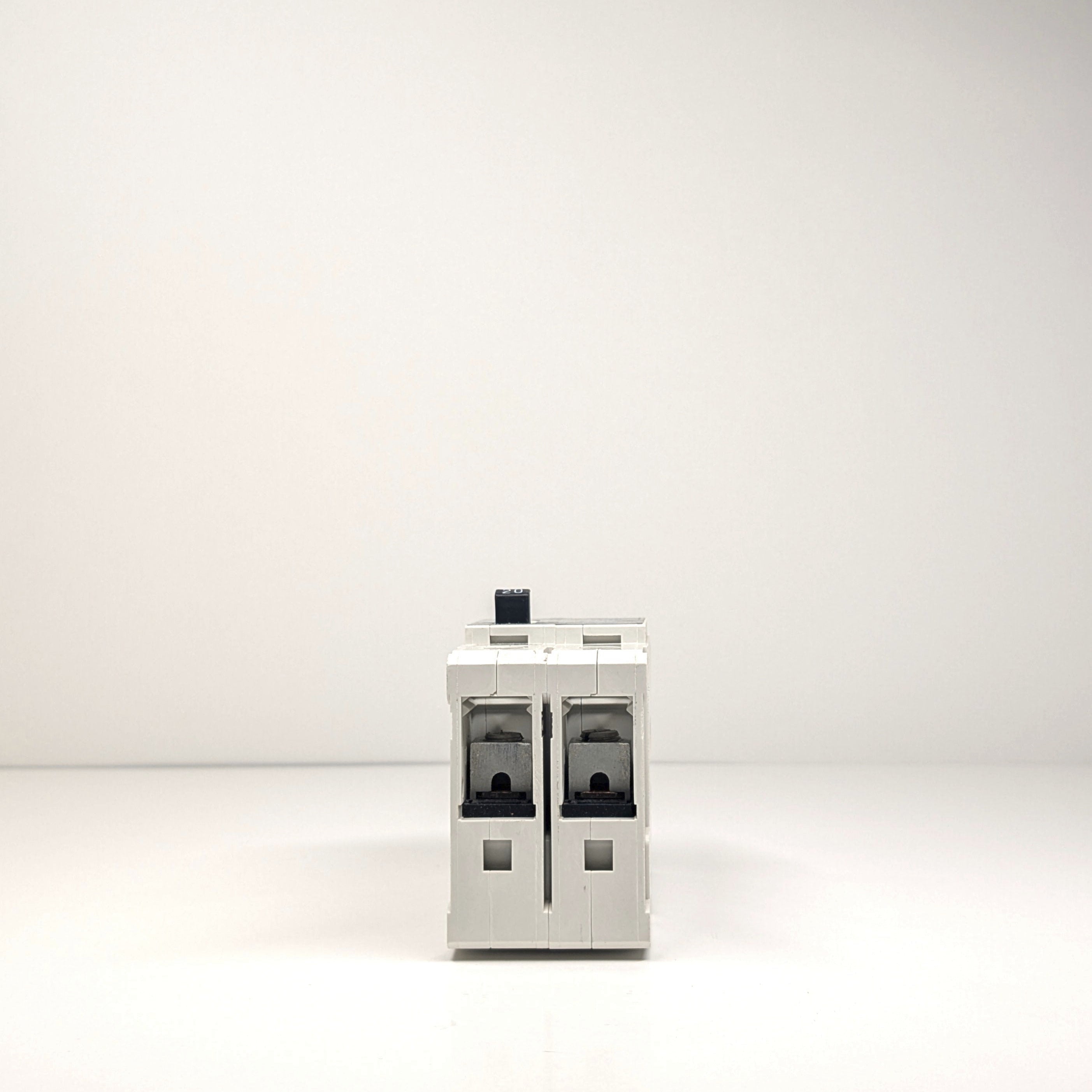

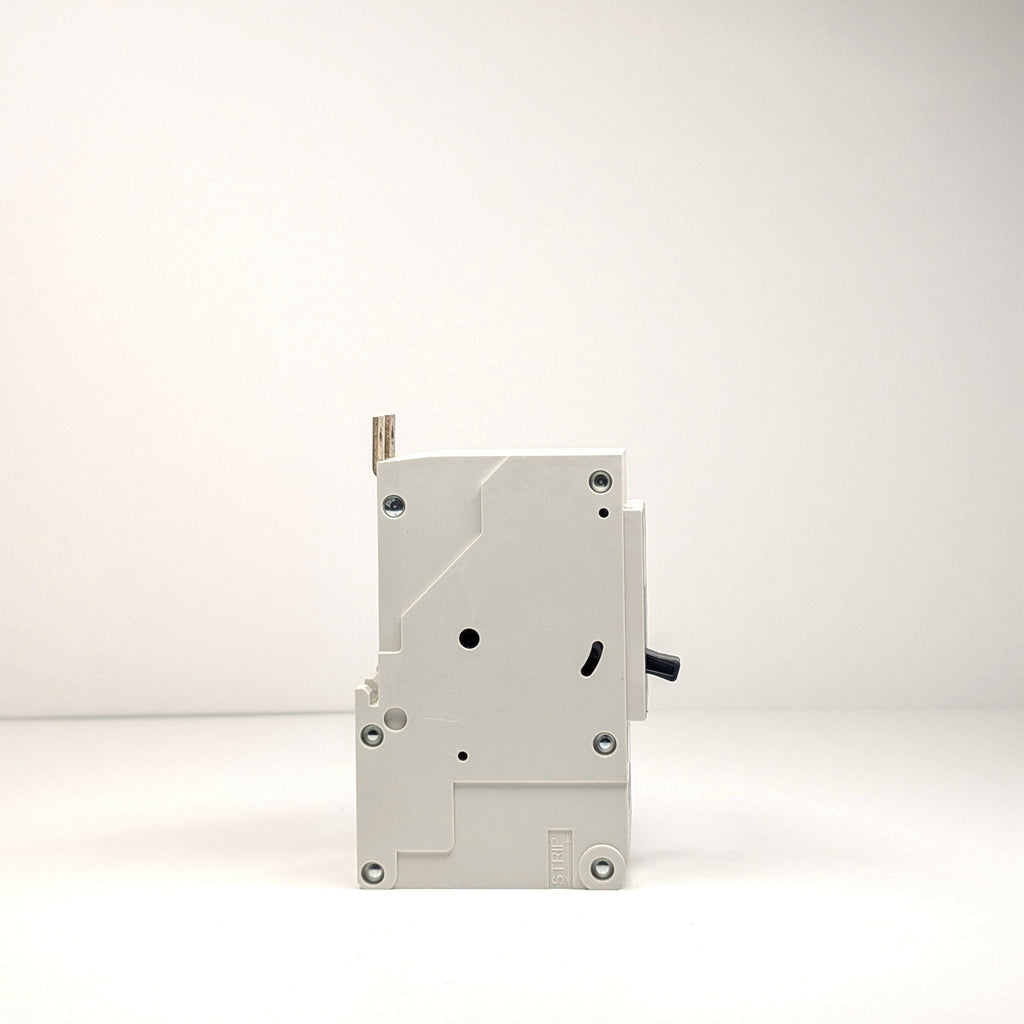

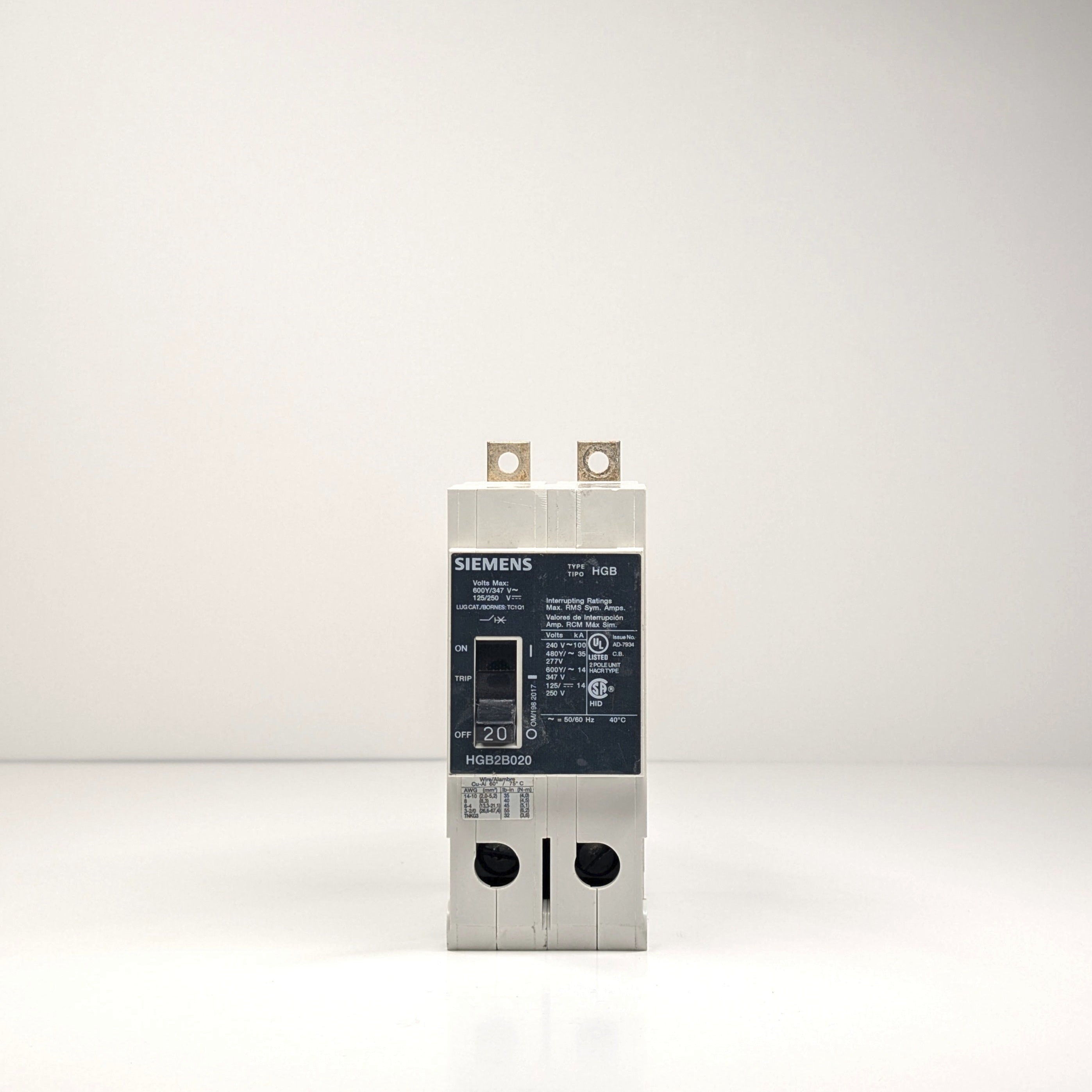

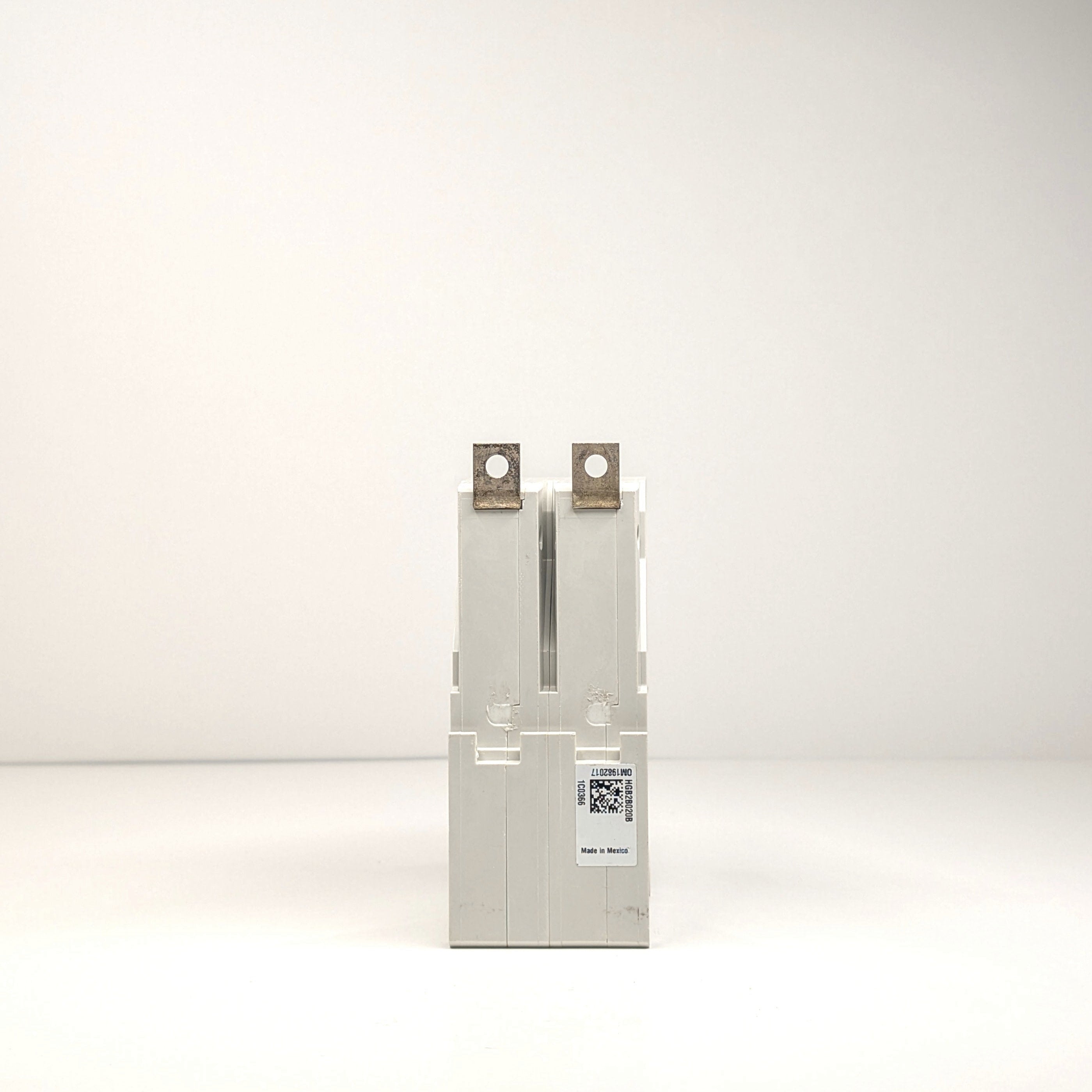

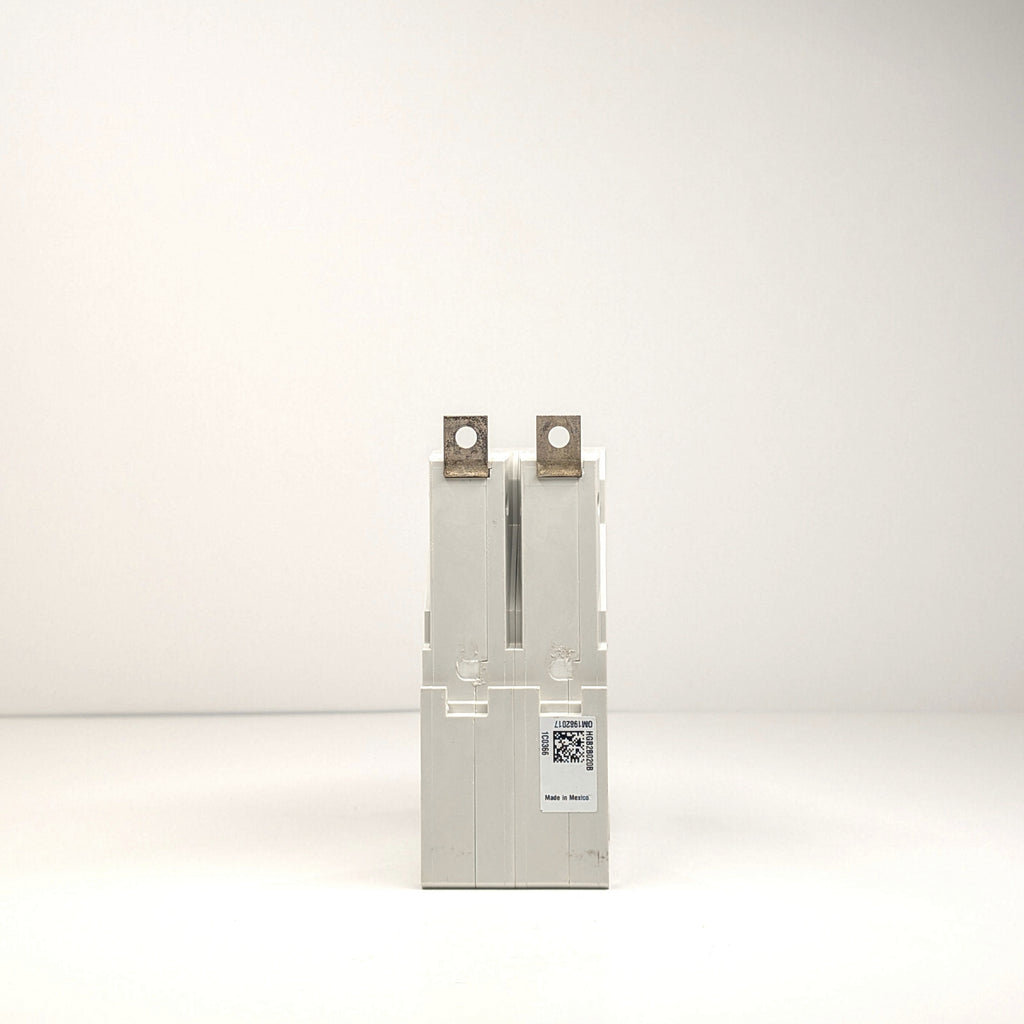

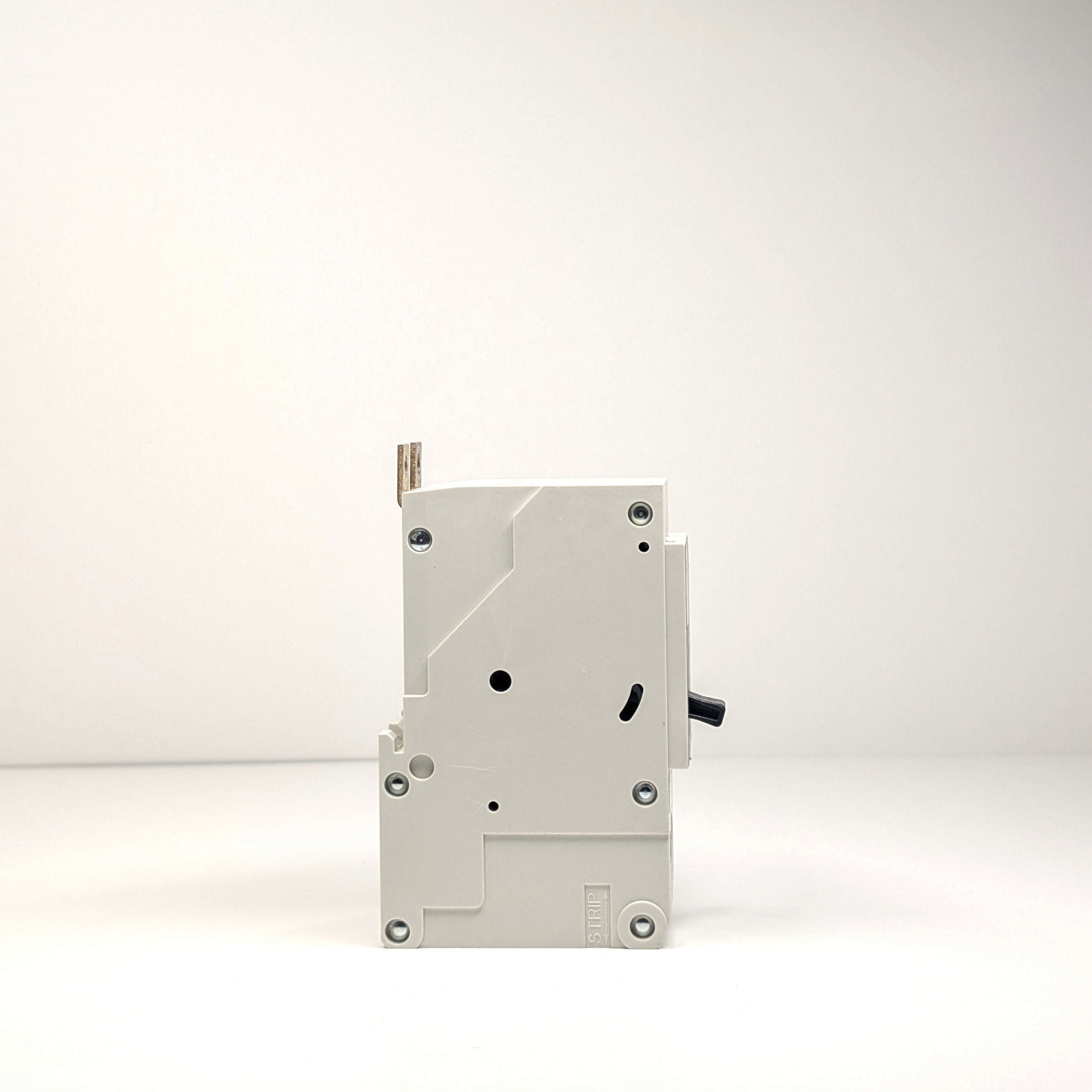

Siemens HGB2B020 2 Pole Circuit Breaker
$150.00
Skip to product information
In stock
Siemens HGB2B020 2 Pole Circuit Breaker
$150.00
Shipping calculated at checkout.
Pickup available at 2201 Midway Rd ste 314
Usually ready in 2 hours
The Siemens HGB2B020 is a 20 Amp, 2-pole Bolt-On circuit breaker from the xGB family, designed for Siemens P1, P2, and P3 panelboards. This thermal-magnetic breaker provides high-performance overcurrent protection for commercial and industrial applications requiring a 480Y/277V AC rating. Its bolt-on design ensures a secure, vibration-resistant connection to the bus bar, making it ideal for permanent installations in demanding environments.
Specifications
| Brand | Siemens |
| Series | xGB (Bolt-on) |
| Amperage | 20 |
| Voltage | 480Y/277V AC |
| Poles | 2 |
| Phase | 1 or 3 |
| Interrupting Rating | 35 kAIC at 480Y/277V AC |
| Frame Type | GB |
| Protection | Thermal-Magnetic |
| Terminal | Bolt-on (Line side) / Load Side Lug |
| Wire Size | AWG #14 to #10 (Copper/Aluminum) |
| MPN | HGB2B020 |
| UPC | 783643444881 |
