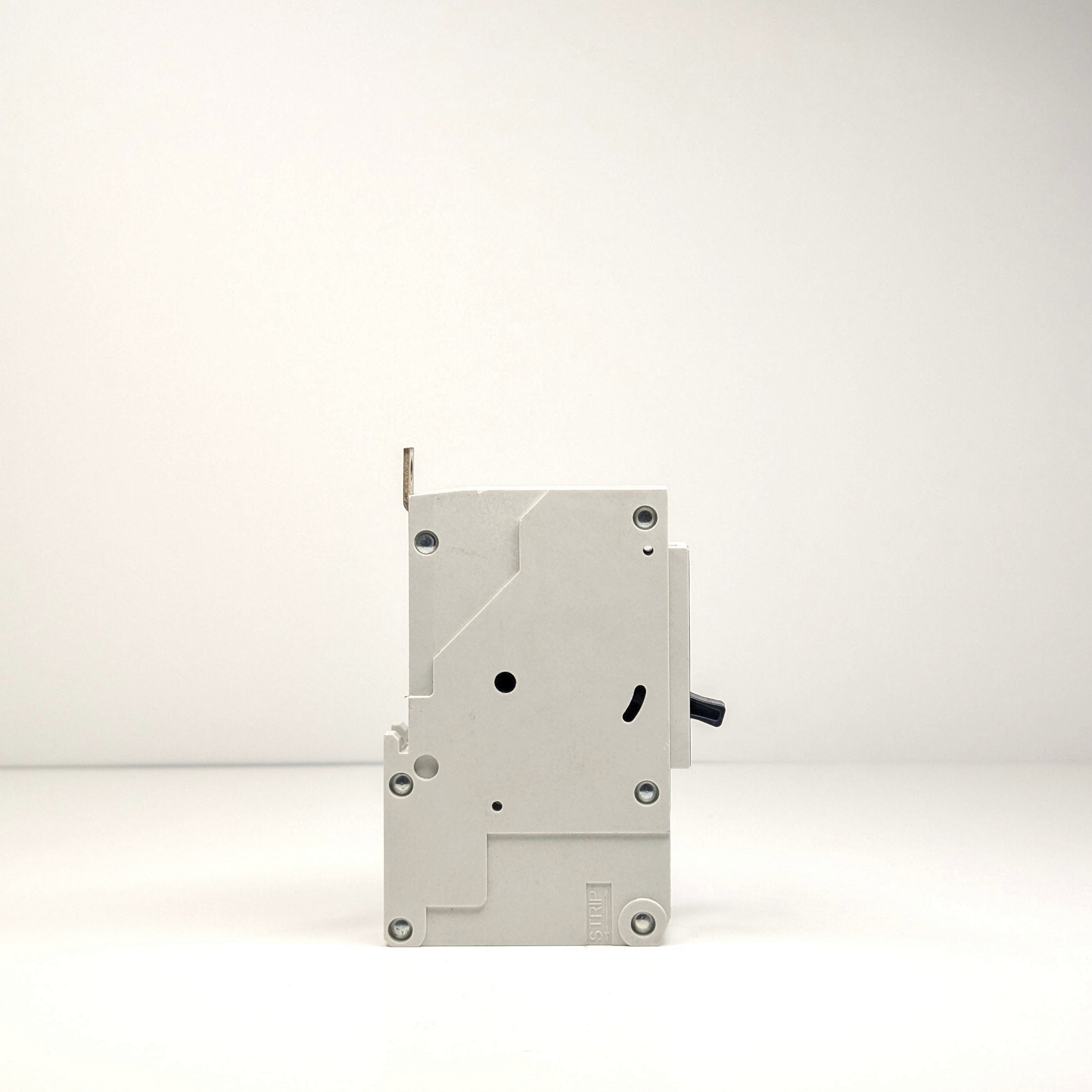

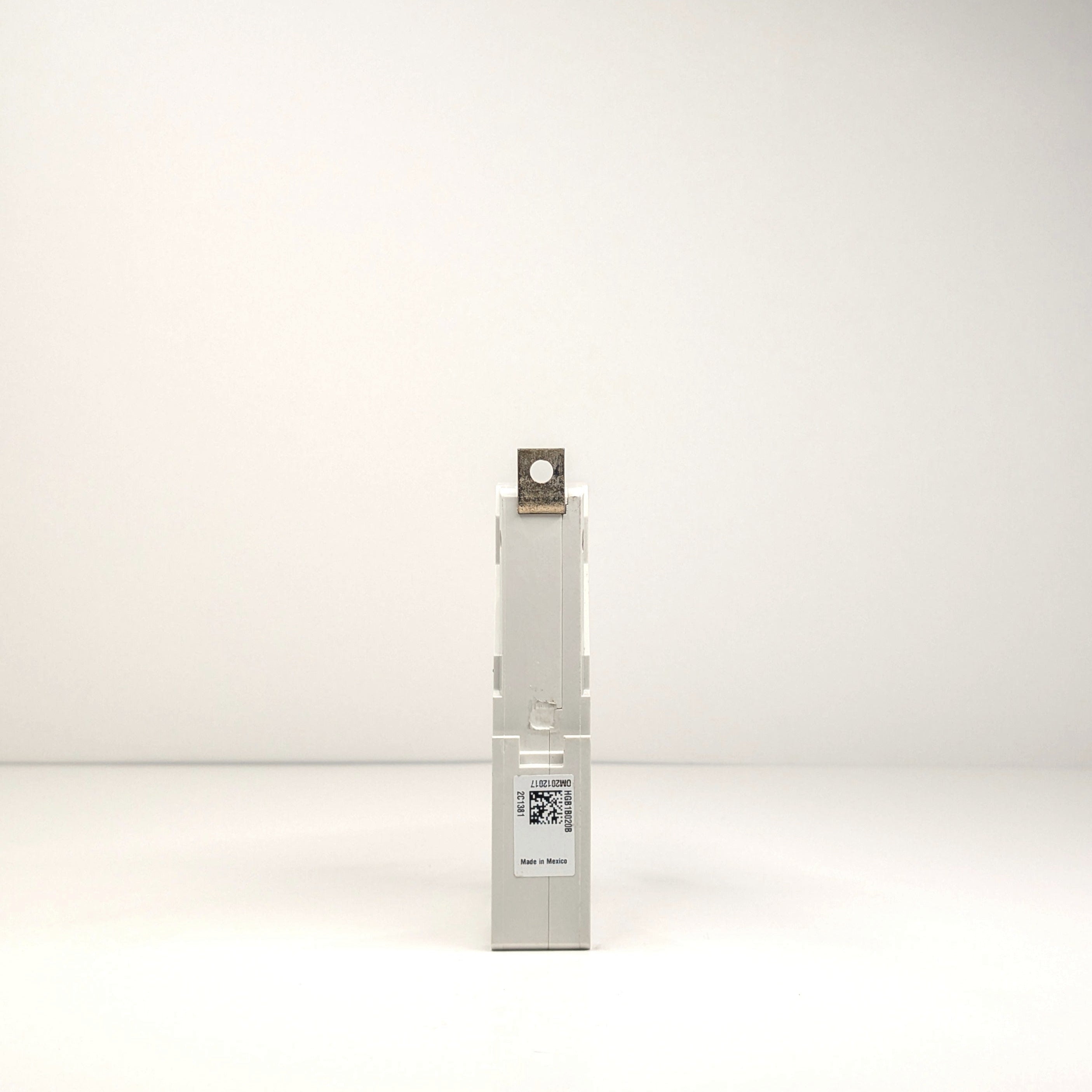

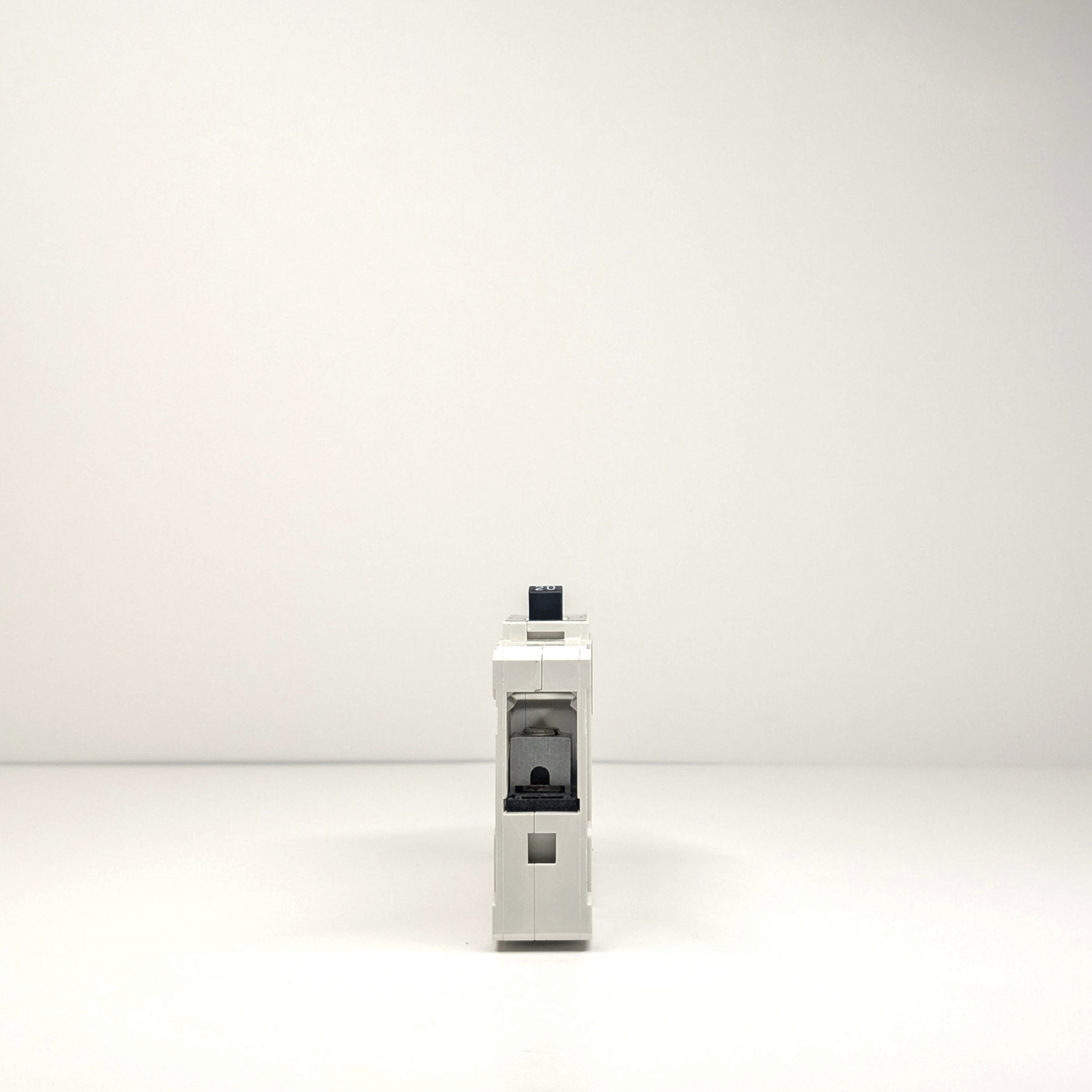

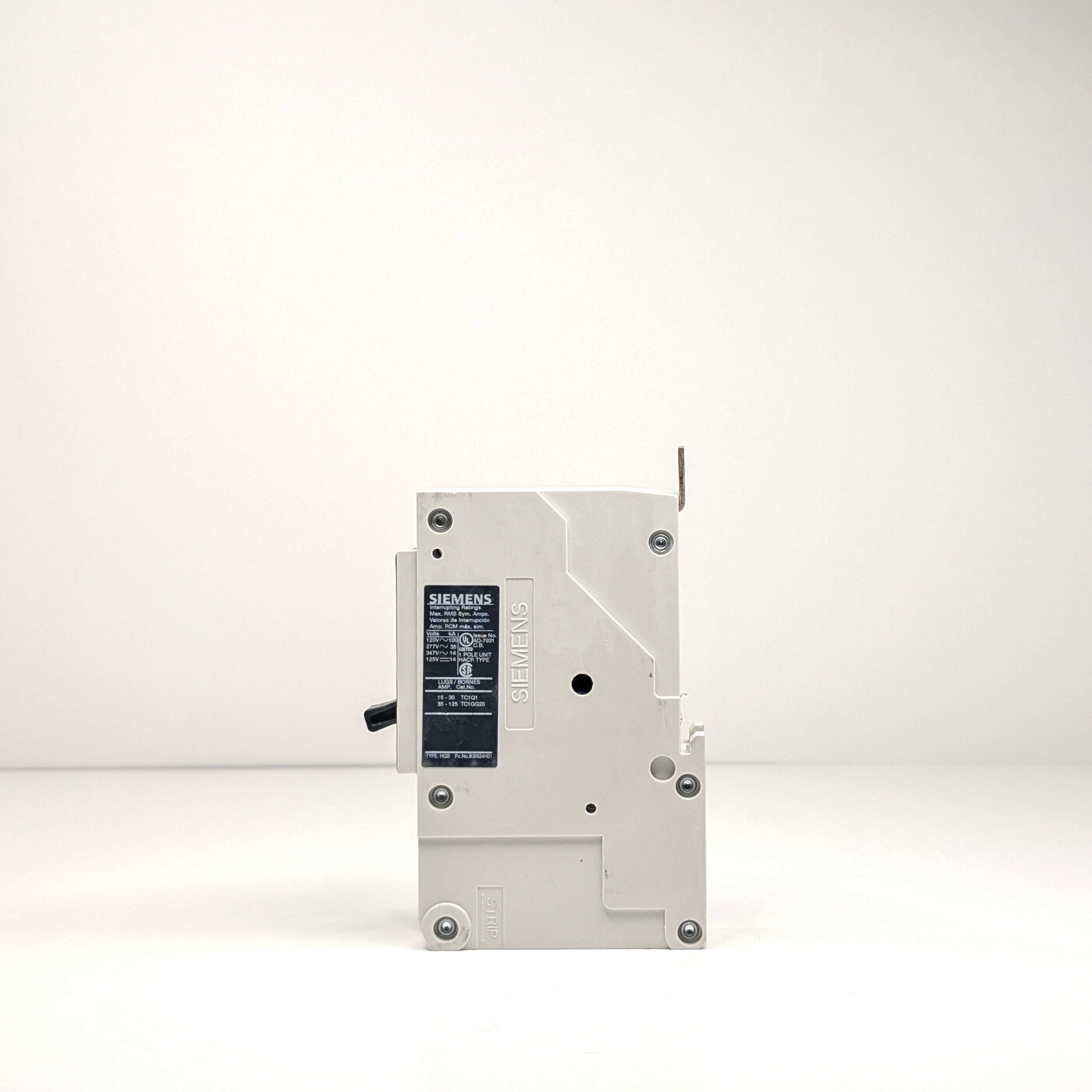

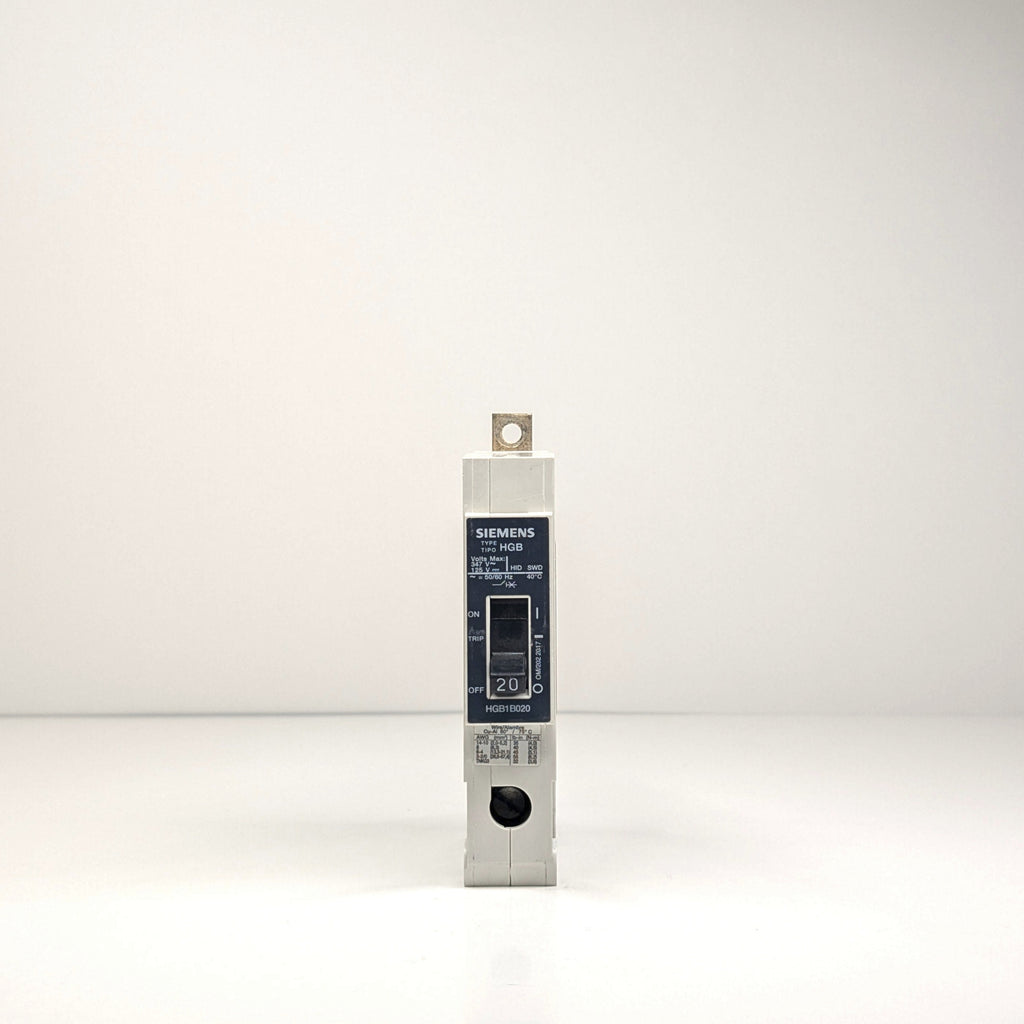

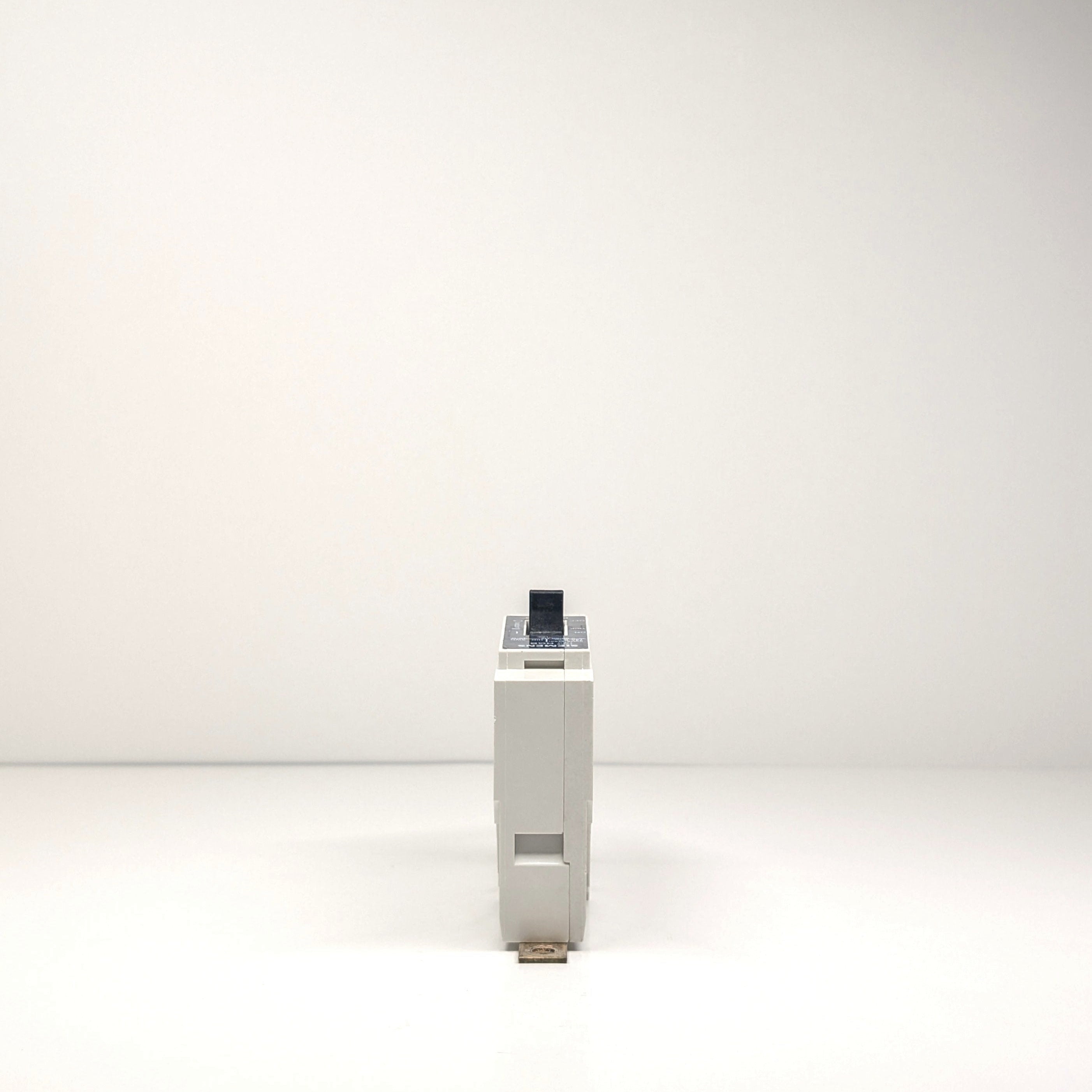

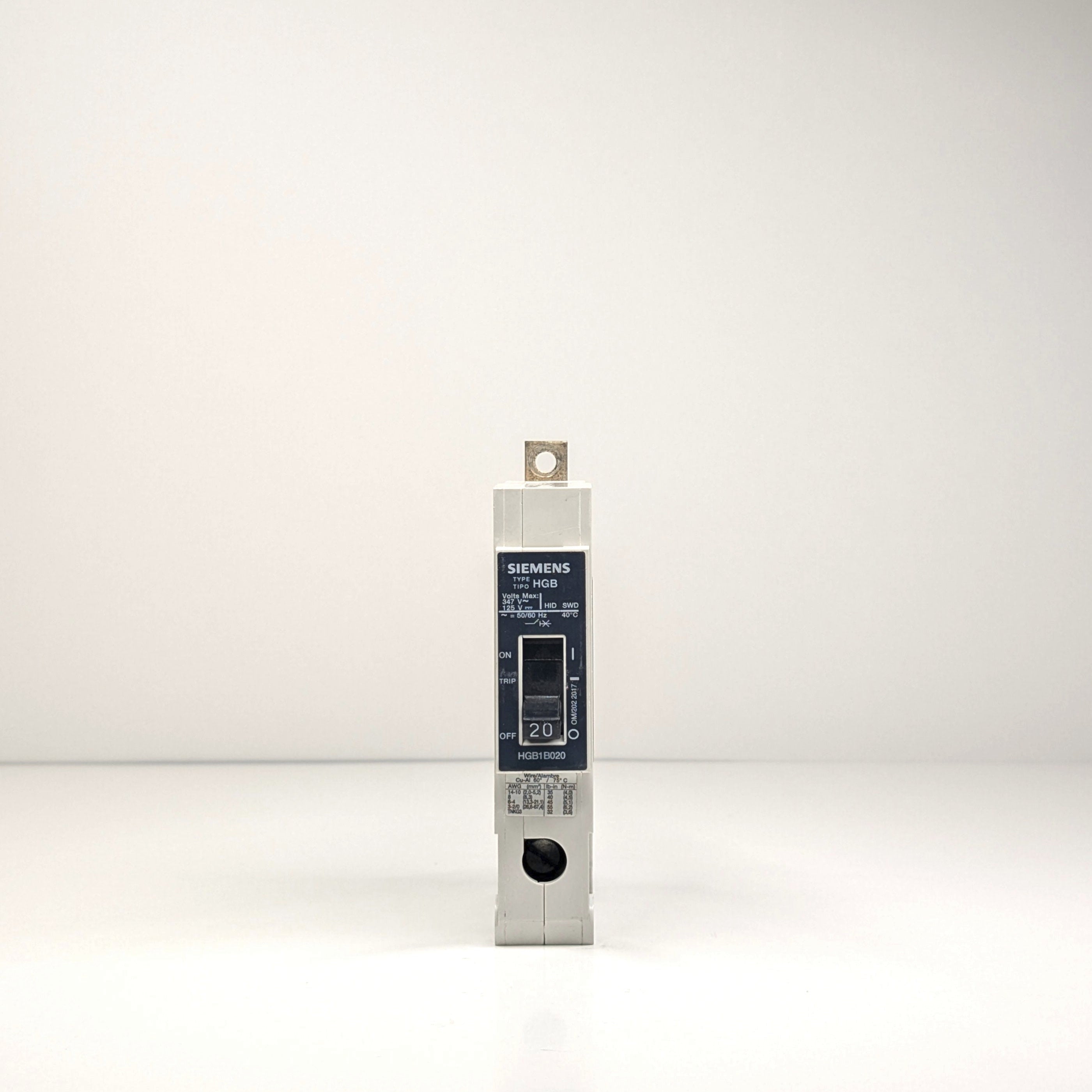

Siemens HGB1B020 1 Pole Circuit Breaker
$75.00
Skip to product information
In stock
Siemens HGB1B020 1 Pole Circuit Breaker
$75.00
Shipping calculated at checkout.
Pickup available at 2201 Midway Rd ste 314
Usually ready in 2 hours
The Siemens HGB1B020 is a 20 Amp, single-pole Bolt-On circuit breaker from the xGB family, designed for use in Siemens P1, P2, and P3 panelboards. This thermal-magnetic breaker provides high-performance overcurrent protection for demanding 277V AC commercial and industrial applications. Its bolt-on design ensures a secure, vibration-resistant connection to the bus bar for long-term reliability in critical infrastructure.
Specifications
| Brand | Siemens |
| Series | xGB (Bolt-on) |
| Amperage | 20 |
| Voltage | 277V AC |
| Poles | 1 |
| Phase | 1 |
| Interrupting Rating | 65 kAIC at 277V AC |
| Frame Type | GB |
| Protection | Thermal-Magnetic |
| Terminal | Bolt-on (Line side) / Load Side Lug |
| Wire Size | AWG #14 to #10 (Copper/Aluminum) |
| MPN | HGB1B020 |
| UPC | 783643444874 |
